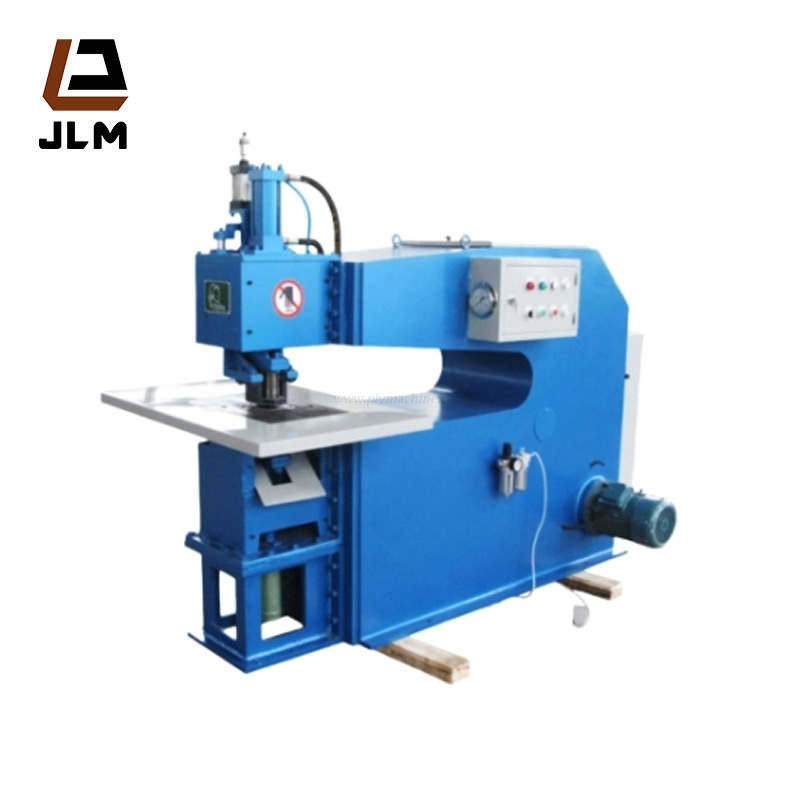

In high-volume plywood production, minor maintenance lapses on a patching unit silently erode material yield and throughput. Minute errors compound rapidly, turning slight misalignments into major bottlenecks. Whether you operate manual pneumatic units or fully automated lines, the precision of the punch and die dictates patch retention. Poor maintenance leads to open defects, downstream delamination, and wasted labor hours. Facilities cannot afford to ignore these creeping inefficiencies.
This guide outlines establishing predictable maintenance baselines for dies, alignment, and cleaning to stabilize operating costs. We also help production managers evaluate when aging equipment requires replacement instead of constant repair. By implementing the robust protocols detailed below, you will learn how to reduce pneumatic waste, extend punch lifespan, and secure tighter defect closures. You will discover actionable steps to keep your equipment running at peak performance.
Die lifecycle management: Routine inspection of punch tolerances prevents edge tear-out and minimizes costly unplanned die replacements.
Alignment protocols: Systematic calibration reduces mechanical wear, ensuring airtight patch fitting that survives downstream processing.
Preventative cleaning: Regular removal of resin and dust mitigates sensor failure and pneumatic jams in automated systems.
TCO Evaluation: Tracking maintenance frequency provides empirical data to justify when upgrading to a modern veneer defect patcher becomes more cost-effective than continuous repairs.
Unplanned downtime wreaks havoc on high-volume production floors. A reactive maintenance strategy assumes machines will run until failure. Contrast the relatively low cost of scheduled preventative maintenance against the staggering expense of halted lines. Every minute a machine sits idle, the facility bleeds potential revenue. When your equipment fails, it disrupts the entire workflow. Workers stand waiting. Downstream pressing stations cool down. The compounding financial impact quickly dwarfs the price of routine servicing.
Degraded cutting tolerances destroy product yield. The patch mechanism relies on microscopic clearances between the punch and the die block. As these edges dull over thousands of cycles, they stop shearing the wood cleanly. Instead, they crush the fibers. This crushing action creates undersized, loose patches. These loose patches inevitably fall out during conveyor transport or inside the hot press. A missing patch leaves an open void in the inner plies. Quality control scanners will flag these panels, leading to immediate rejection or costly manual rework.
How do you measure a successful maintenance program? The success criteria must rely on empirical data rather than operator intuition. First, look for measurable drops in rejected sheets at the finishing line. Second, monitor your compressor loads. A well-maintained veneer patching machine features tight seals, resulting in reduced pneumatic air consumption and fewer costly leaks. Finally, track your consumable spend. Predictable part replacement schedules eliminate rushed, premium-priced freight orders for emergency spare parts.
The punching mechanism serves as the beating heart of the machine. Daily wear and tear gradually compromise its structural integrity. Operators must learn to identify critical wear indicators before catastrophic failure occurs. Inspect the metal surfaces carefully during weekly teardowns. Dulling edges appear shiny and rounded under a flashlight. Scoring marks along the side of the punch indicate friction issues. Uneven wear patterns on the die block suggest the punch is striking at an angle. Left unchecked, these issues shatter the die completely.
Managers constantly weigh the benefits of sharpening versus full replacement. You need a systematic framework for this decision. If tolerance loss becomes too severe, full replacement remains the only safe option.
Punch and Die Maintenance Decision Matrix
Condition | Recommended Action | Expected Outcome |
|---|---|---|
Slight edge rounding, no visible scoring | Re-sharpening | Restores clean shearing action; minor tolerance shift. |
Deep scoring on punch flanks | Full Replacement | Prevents die block shattering and restores factory tolerances. |
Uneven or angled wear patterns | Inspect Alignment & Replace | Fixes root cause of asymmetric wear; prevents immediate recurrence. |
Re-sharpened more than three times | Full Replacement | Avoids undersized patches caused by excessive metal removal. |
There are serious risks associated with over-sharpening. Every time a technician grinds the die, they remove a fraction of a millimeter of metal. Eventually, the punch becomes significantly smaller than its original specification. The resulting patch will be too small for the punched defect hole. It will rattle loosely and fail to hold.
Lubrication realities present another major challenge. Metal components require lubrication to reduce friction and dissipate heat. However, applying too much oil poses severe risks to the final product. Oil drips contaminate the raw wood surface. Phenolic or melamine resins will not bond to oily veneer, leading to internal blisters during hot pressing. Best practices dictate using specialized dry PTFE lubricants or highly calibrated micro-drip systems. These methods ensure the punch glides smoothly without compromising downstream adhesion.
Calibration is not a one-time setup task; it requires ongoing vigilance. Over months of heavy operation, constant mechanical shock causes structural frames to flex and settle. This natural vibration gradually knocks the machine out of perfect alignment.
Understanding the differences between pneumatic and mechanical alignment is crucial. Manual pneumatic machines depend on physical hard stops and regulated air pressure. Technicians must routinely check the bumper pads and cylinder rods for physical wear. In contrast, fully automated servo-driven systems rely on software parameters and encoder data. Maintenance for automated systems involves updating firmware, checking cable shielding against electromagnetic interference, and recalibrating the digital home position.
X-Y axis calibration dictates patch accuracy. You must verify the alignment between the digital defect scanner (or the operator's manual crosshairs) and the physical center of the punch. When these two points drift apart, the machine misses the exact center of the defect. This drift causes frustrating half-moon mispunches. The die cuts partially into the solid wood and leaves half of the original defect intact.
Follow these steps to perform a manual X-Y calibration check:
Isolate the equipment from all external power and compressed air sources to ensure safety.
Place a clean test sheet marked with a highly visible, printed target grid under the head.
Engage the manual override screw to lower the punch block slowly onto the paper target.
Measure the exact deviation between the intended crosshair center and the actual die impact zone.
Loosen the primary mounting bolts and adjust the head along the X and Y axes until perfect concentricity is achieved.
Tighten all bolts to torque specifications and run five test cycles to confirm stability.
Thickness adjustment remains a critical, often overlooked parameter. Veneer sheets naturally vary in thickness depending on the peeling process. Calibrating the pressing mechanism ensures the patch sits perfectly flush with the surrounding surface. If the pressing cylinder lacks adequate force, the patch protrudes above the surface. A raised patch catches on conveyor belts and causes severe feeding jams at the veneer composer stage. Regular thickness calibration prevents these disruptive downstream bottlenecks.
The operational environment in a plywood mill is exceptionally harsh. Airborne dust, volatile organic compounds, and sticky sap coat every exposed surface. Preventative cleaning goes far beyond basic housekeeping; it directly influences machine reliability.
Resin and sap buildup create severe mechanical drag. Wood resins naturally exude from the sheets during processing. When this sticky sap accumulates on the die clearance gaps, it binds moving parts. The punch struggles to retract smoothly. To combat this, maintenance teams must use recommended industrial solvents. Avoid harsh generic degreasers, as they often degrade sensitive machine seals and O-rings. Instead, opt for citrus-based industrial solvents or specific resin-dissolving sprays. These formulas break down the sticky sap without destroying the synthetic rubber seals inside the pneumatic blocks.
Pneumatic system hygiene requires stringent protocols. Compressed air systems inherently generate water vapor through condensation. Inline air dryers and automated lubricators are absolute necessities. They extract moisture before it reaches your equipment. If water enters the pneumatic lines, it mixes with residual oil to form a sludgy emulsion. This sludge causes rust inside the internal cylinder walls, slowing down the punch cycle dramatically. Furthermore, operators must clear wood dust from the exhaust mufflers and valves. Clogged exhaust ports create backpressure. This trapped air prevents the cylinder from extending with maximum force, resulting in incomplete cuts.
For facilities running an automated veneer defect patcher, sensor and optic care is paramount. These machines rely entirely on photoelectric sensors, laser lines, and high-speed cameras to identify flaws. Fine wood dust settles rapidly on these lenses. A dirty camera lens creates a cloudy image, leading to false defect detection or entirely missed patches.
Implement these optic cleaning best practices:
Blow away loose dust gently using clean, low-pressure compressed air.
Wipe lenses exclusively with optical-grade microfiber cloths to prevent micro-scratches.
Use approved electronic glass cleaners rather than harsh ammonia-based window sprays.
Inspect and clean the reflector panels positioned beneath the conveyor belts daily.
Every machine eventually reaches the end of its viable economic life. Production managers must recognize the turning point where maintenance transitions from a cost-saving measure to a financial burden.
Beware of the sunk cost trap. Maintenance teams often develop an emotional attachment to legacy equipment. They argue they must keep the machine running because they just installed a new cylinder last month. This logic is dangerous. You must track your escalating maintenance hours objectively. When the combined cost of replacement parts, technician overtime, and lost production outpaces the amortized cost of a new machine, replacement is mandatory.
Examine how your equipment handles scalability and integration. A standalone machine does not operate in a vacuum. Assess whether your legacy equipment is bottlenecking downstream processes. For example, you might have recently installed a high-speed composer line. If your outdated manual patcher cannot supply repaired sheets fast enough, the new line starves. The slow machine negates the return on investment of the faster equipment.
Develop a clear shortlisting logic for upgrades. When evaluating new models, prioritize the ease of die changeovers. Modern designs utilize quick-release clamping systems. These systems reduce changeover times from hours to minutes. Investigate diagnostic software capabilities carefully. Advanced machines feature self-diagnosing HMIs. They pinpoint exact sensor failures instantly. Finally, verify the long-term availability of OEM replacement parts. A cheaper import machine loses its appeal quickly if spare parts take six weeks to arrive via ocean freight.
Consider the implementation realities before signing a purchase order. Transitioning your workforce from manual levers to automatic touchscreen interfaces introduces a steep learning curve. Operators may initially resist the change or struggle navigating the software. Mitigate these training risks by involving key operators early in the purchasing decision. Schedule vendor-led training sessions during the commissioning phase. This hands-on approach builds operator confidence quickly.
Consistent, systematic maintenance transforms a veneer patching machine from a source of unpredictable downtime into a reliable yield-protection asset. By controlling die wear, maintaining precise alignment, and enforcing strict cleaning protocols, facilities eliminate the vast majority of operational bottlenecks. These practices preserve raw material quality and reduce unnecessary labor waste.
We recommend conducting a comprehensive audit of your current die wear and alignment logs this week. Compare your findings against the baseline metrics discussed in this guide. If your equipment constantly struggles to hold tolerances despite rigorous upkeep, it may be time for a change. Contact our engineering team for a consultation on equipment lifecycle audits, or request detailed quotes for modern, low-maintenance patching solutions designed to maximize your throughput.
A: Sharpening frequency depends heavily on wood species and production volume. Hardwoods dull edges much faster than softwoods. Typically, dies require inspection every 40 to 50 hours of operation. Do not base sharpening cycles solely on elapsed time. Instead, base them on edge-quality degradation and visual inspections. Catching minor wear early requires less aggressive grinding, extending the overall lifespan of the tool.
A: Loose patches are usually caused by three distinct factors. First, a dull die causes wood tear-out rather than a clean shear, resulting in a loose fit. Second, misalignment between the punch and die block creates an undersized, asymmetrical patch. Finally, inadequate pressing force during the pneumatic stroke fails to seat the patch flush within the sheet. Inspecting these three areas resolves most retention issues.
A: Yes, you can implement minor upgrades. Installing improved inline air filtration, automated lubricators, and high-precision digital air regulators will smooth out operation. However, core precision ultimately relies on structural rigidity and die quality. If the machine frame suffers from heavy tolerance loss and vibration fatigue, retrofitting parts will not solve the root issue. Severe structural wear usually necessitates replacing the entire patching unit.
