In veneer peeling and plywood production, mill profitability is won or lost before the timber ever reaches the lathe. Manual or imprecise bucking creates hidden bottlenecks across the floor. These initial preparation errors compound rapidly during continuous rotary peeling operations.

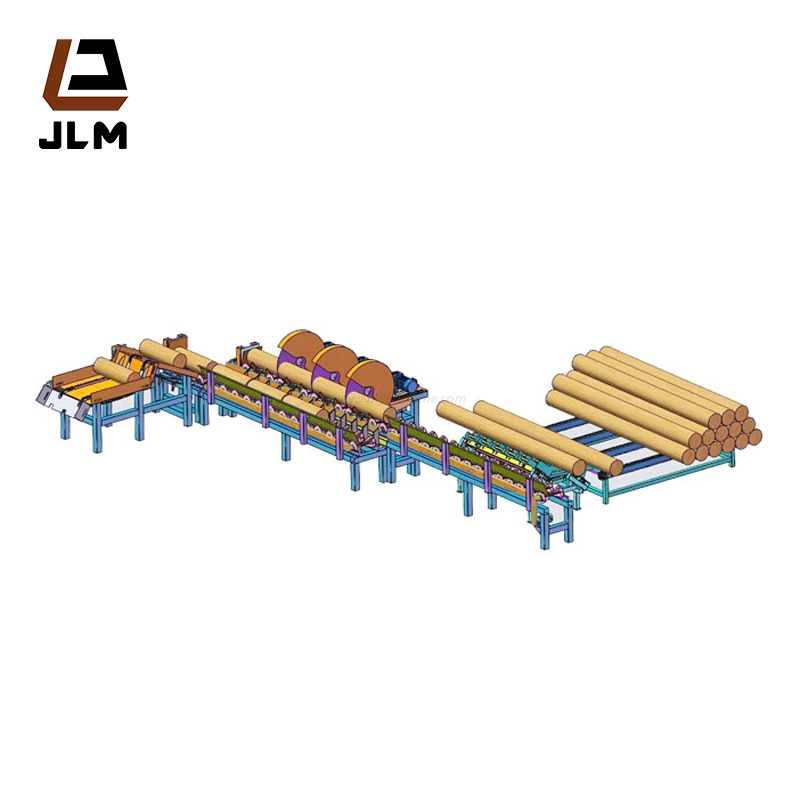

Modern facilities are shifting away from basic chainsaws toward robust, industrial-grade solutions. Integrating a reliable Log Cutting Saw transforms raw timber handling. We designed this evaluation guide to help you align your machinery directly with specific peeling line tolerances. You will quickly learn how the right technology matches your daily output goals.
Minimizing length deviation directly correlates with increased veneer recovery rates. It also significantly reduces downstream machine downtime. We will explore the financial impacts of cut accuracy, key equipment capabilities, and vital industry safety standards. Ultimately, you will discover how to select the ideal system for your specific mill.
Yield Protection: Even a 2-inch variance in log length can lead to excessive rounding waste or rejected blocks at the peeling lathe.
Automation Equals Consistency: Transitioning to an automatic log cutter eliminates operator fatigue, ensuring repeatable precision across high-volume shifts.
Integration is Critical: The ROI of a high precision log length cutting machine depends on its ability to match the feed rate of downstream peeling equipment without creating material handling bottlenecks.
Safety and Compliance: Modern equipment standardizes safety protocols, aligning with USDA/OSHA guidelines for circular and chain saw operations by removing operators from the direct strike zone.
Accurate bucking secures mill profitability. It prevents downstream processing failures before they happen. Many operators underestimate how severely initial cut dimensions affect rotary lathe performance. You must measure the financial consequences of poor timber preparation.
Rotary peeling lathes require perfectly square log ends. Un-square cuts cause severe off-center clamping. When the lathe chucks engage an angled face, they bite unevenly into the wood fibers. The spindle attempts to rotate the block under immense pressure. Uneven clamping forces the core to split or shatter. This specific failure is known as a spindle spin-out. Spin-outs immediately halt production. Operators must manually clear the shattered core from the machine. Furthermore, off-center clamping guarantees uneven veneer thickness during the critical initial rounding phase.
Dimensional errors drain your raw material yield. Cutting blocks too long introduces excessive spur knife waste. The lathe’s spur knives must forcibly chop through solid wood to reduce the block to the correct length. This aggressive cutting dulls the knives prematurely. It also consumes excessive electrical power. Conversely, cutting blocks too short destroys their value entirely. Short blocks cannot produce standard plywood panel dimensions. You must discard them or downcycle them into low-value chips. Optimizing length recovery directly protects your profit margins.
Out-of-spec logs cripple continuous throughput. When scanners detect an oversized or severely un-square block, the system rejects it. Workers must use manual chainsaws to re-trim these rejected blocks. Manual re-trimming demands intensive labor. It pulls workers away from productive tasks. The peeling line starves for material while workers fix bucking errors. This intermittent feeding disrupts the entire pacing of the plywood plant.
You need a clear baseline to justify equipment upgrades. Define your success metric through recovered yield and continuous uptime. Track the sheer reduction in rejected blocks per shift. Measure the increase in continuous, uninterrupted peeling time. A high-performing system drastically lowers your daily rejection rate. Improved cut squareness keeps the lathe running without manual interventions. Tracking these two metrics reveals the true financial return of your preparation upgrades.
Selecting the right machinery requires matching specific features to your operational hurdles. Not all cutting systems handle timber equally. You must evaluate the core mechanics of the saw to ensure it meets your tolerance requirements.
Mills generally choose between heavy-duty crosscut chainsaws and large-diameter circular saws. Your log profile dictates the best choice. Crosscut chainsaws excel at processing oversized, highly variable timber. They handle massive diameters easily. However, chainsaws have slower cycle times and often leave a rougher end face.
Large-diameter circular saws deliver incredibly fast cycle times. They slice through wood rapidly. More importantly, circular blades leave a pristine, smooth face. This clean face is critical for precise lathe chucking. Below is a simple comparison chart detailing these two mechanisms.
Feature Category | Crosscut Chainsaw System | Large-Diameter Circular Saw |
|---|---|---|
Cycle Speed | Moderate to slow | Extremely fast |
Cut Finish | Rough, textured face | Smooth, precise face |
Ideal Log Type | Oversized, flared, irregular | Uniform, small to medium diameter |
Lathe Compatibility | Acceptable, may require deeper chucking | Excellent, prevents spindle spin-outs |
A saw blade is only as accurate as its clamping mechanism. You cannot achieve square cuts if the wood shifts. Modern machines utilize heavy-duty hydraulic v-clamps. The "V" shape naturally centers the round log against the cutting deck. Robust hydraulic pressure secures the timber firmly. This prevents rolling during the cut. It also stops blade binding. A bound blade stalls the motor and damages the equipment. Solid fixation ensures every cut drops perfectly perpendicular to the log's grain.
You must demand strict mechanical tolerances from your equipment. Aim for length deviations of less than ±5mm. Achieving this standard requires a high precision log length cutting machine. Consistent ±5mm accuracy virtually eliminates spur knife stress at the lathe. It guarantees maximum usable veneer ribbon length. When evaluating vendors, ask for documented tolerance capabilities under continuous heavy load.
Cutting operations generate massive volumes of residue. Sawdust, bark, and offcuts accumulate rapidly. If left unmanaged, this debris jams conveyors and fouls sensors. Evaluate the built-in residue extraction capabilities. Look for integrated sawdust chutes, high-capacity vacuum ports, and vibrating drop-out decks. Efficient residue management prevents secondary jams. It keeps the production line moving cleanly.
Manual measuring introduces inevitable human error. Scaling your production requires removing these manual touchpoints. Upgrading workflow means integrating smart automation into the material handling sequence.
A saw is useless if it starves for raw material. Heavy-duty infeed and outfeed conveyors play a massive role here. They must withstand severe impact loads from dropped timber. Optical sensors and laser scanners map the wood as it enters the cutting deck. These sensors calculate the exact diameter and length. Automated log kickers then eject the cut blocks onto the correct sorting deck. This continuous sequence maintains a flawless flow to the downstream peeling line.
Modern automation relies on sophisticated Programmable Logic Controllers. PLCs allow supervisors to pre-program multiple cut lengths based on shifting daily orders. They optimize yield dynamically. For example, a highly tapered or swept log presents a yield challenge. The PLC analyzes the sweep profile. It automatically calculates the best combination of short and long blocks to extract. This intelligent decision-making recovers usable wood from otherwise low-grade timber.
Integrating an automatic log cutter fundamentally changes your workforce dynamics. You shift labor away from dangerous, repetitive manual tasks. Workers transition from holding manual chainsaws to supervising automated systems. They monitor screens, adjust parameters, and manage workflow. This transition drastically reduces operator fatigue. It eliminates the physical strain of measuring and marking wet, heavy timber. A supervised automated system guarantees repeatable precision across grueling twelve-hour shifts.
Purchasing the equipment represents only the first step. Proper installation and maintenance govern long-term success. You must address the physical realities of deploying heavy machinery in a demanding industrial environment.
Mills frequently overlook foundational requirements during installation. Heavy log processing generates intense, repetitive vibrations. You must manage this vibration to maintain cut squareness over time. A weak concrete foundation allows the machine frame to flex. Even a microscopic frame flex translates into skewed cuts. Ensure your installation site features rigid foundational support. Deep concrete footings and vibration-dampening mounting pads are essential. They lock the cutting deck into perfect alignment.
Precision machinery requires disciplined maintenance. You must plan for consumable replacements. Circular saw blades require regular sharpening cycles to maintain their cutting edge. Crosscut chains demand frequent tensioning and lubrication. Operating dull blades forces the machine to work harder, increasing electrical draw and heat buildup. Establish transparent assumptions about blade lifespans. Stock adequate replacement consumables to prevent unplanned downtime. Scheduled maintenance keeps your tolerances tight.
Log processing remains inherently dangerous. Modern equipment mitigates these risks by standardizing safety protocols. Adhere strictly to guidelines found in USDA and OSHA technical manuals. The core principle involves removing operators from the direct strike zone.
Operator Guarding: Enclose the cutting zone with heavy steel shielding and Lexan glass.
Emergency Stops: Install accessible e-stop buttons along the entire conveyor line.
Kickback Prevention: Utilize anti-kickback fingers and secure hydraulic clamping to prevent wood from launching.
Safety compliance protects your workforce. It also shields the business from devastating liability claims.
You face numerous vendor options when upgrading your line. A structured shortlisting process prevents costly purchasing mistakes. Follow a logical sequence to identify the exact machine specifications you need.
Never buy equipment blindly. You must first audit your existing operational bottleneck. Gather hard data from your factory floor to establish a working baseline. Follow these actionable steps:
Measure your current daily volume of rejected, mis-cut blocks at the lathe.
Log the exact minutes of downtime caused by spindle spin-outs and chucking failures.
Calculate your overall daily trim waste percentage.
This data defines the specific problem you need a log length cutting machine to solve. It provides the financial justification for your investment.
Mills process drastically different raw materials. Ensure your chosen equipment accommodates your specific supply chain profile. Assess your average and maximum diameter ranges. A mill processing massive old-growth timber requires a different setup than one processing plantation thinnings. Consider species hardness as well. Dense hardwoods demand higher horsepower motors and specialized blade teeth. Softwoods require faster cycle speeds to maintain profitability. Match the machine's rated capacity directly to your timber profile.
Heavy machinery breaks down eventually. When it does, parts availability determines your recovery speed. Emphasize vendor support during your evaluation. You need highly responsive OEM (Original Equipment Manufacturer) support. Verify their inventory of critical wear parts. Ask about lead times for replacement chains, bars, circular blades, and hydraulic seals. Sourcing robust wood log preparation equipment from a vendor with local technical support minimizes disastrous production halts.
Accurate log preparation dictates the success of your entire plywood operation. An advanced cutting system is not merely peripheral preparation equipment; it is a direct driver of peeling line efficiency. Controlling length deviation and cut squareness protects your raw material yield. It eliminates the severe downstream costs of lathe jams and core splitting.
However, you must remember that precision machinery requires disciplined upkeep. You cannot install an automated system and ignore blade maintenance or foundation stability. Adhering to strict maintenance schedules guarantees the machine holds its stated tolerances for years.
Take action today by auditing your factory floor. Calculate your current trim waste percentage. Track your daily lathe downtime. Armed with this data, consult with a trusted equipment specialist. They will help you specify and install a machine perfectly matched to your production volume.
A: It depends heavily on the specific model. Circular saws typically handle diameters up to 24-30 inches quickly and cleanly. Bar and chain mechanisms can easily scale to handle 48+ inches, though they operate at much slower cycle times.
A: Non-square ends cause uneven chuck penetration. When the lathe clamps down, the off-center pressure leads to spindle spin-outs. This cracks the block, ruins continuous veneer ribbons, and forces operators to clear the machine manually.
A: The return period usually ranges from 12 to 24 months. This timeline depends heavily on how drastically the new equipment reduces wasted wood volume and increases continuous lathe uptime.
A: Yes. Most modern PLC-controlled saws can be retrofitted seamlessly. They easily integrate into existing step-feeders and conveyor lines by utilizing custom transition decks and synchronized optical sensors.
