The Automatic Log Cutting Saw is a high-efficiency and safe solution widely used in veneer and plywood factories. Before veneer production, logs often need to be cut into specific lengths. This machine automatically cuts logs into the required size and conveys them into the log debarker, ensuring a smooth veneer production process.
Without this equipment, logs must be cut manually, which is inefficient and unsafe for workers. With automated feeding, clamping, sawing, and discharging functions, the Log Cutting Saw allows continuous operation and significantly improves production efficiency.
Logs are transported into the sawing area via a chain or conveyor belt. The alloy circular saw blade cuts the wood at high speed, achieving precise, clean, and efficient cutting. Depending on production requirements, the machine can be equipped with one to three blades, or an optional chain saw blade for oversized logs.
| Model | DMJ6000-50S |
|---|---|
| Maximum log length | 6000mm |
| Maximum log diameter | Φ500mm |
| Cutting length | 1300–2600mm (adjustable) |
| Saw blade size | Φ1200mm |
| Blade Quantity | 1–3 pieces (customizable) |
| Motor power | 18.5kW |
| Feeding type | Hydraulic system |
| Product capacity | 80–120m³/day |
| Log fixed type | Clamping arm |
| Control method | Semi / Full automatic (optional) |
| Roller conveyor length | 12000mm |
| Weight | 5500kgs |
| Overall size | 15000 × 1800 × 1550mm |

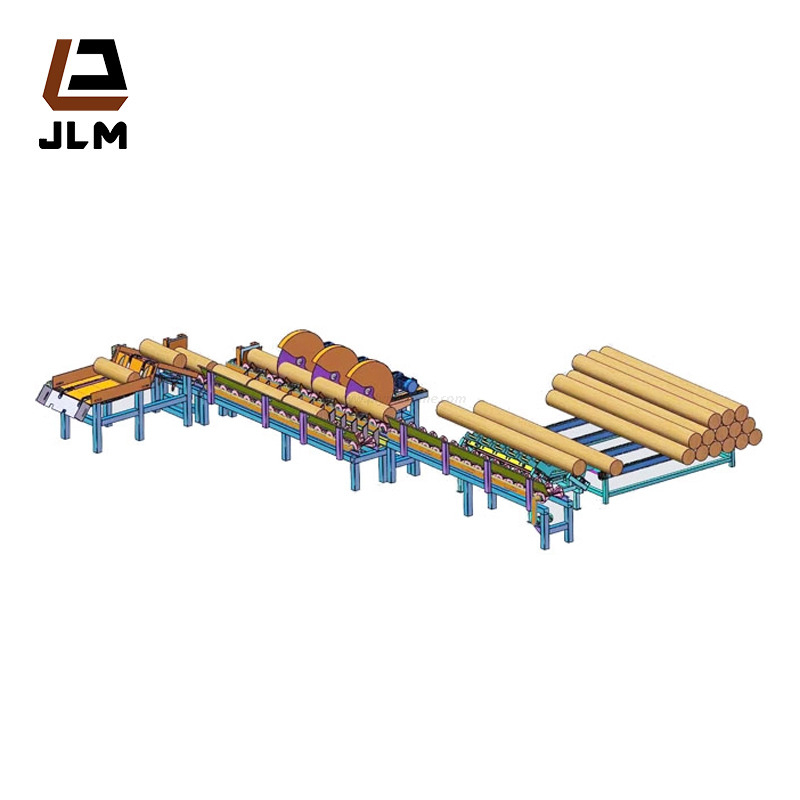

Robust Structure – The saw is composed of five main units: log cross feeder, stepper log feeder, longitudinal in-feeder, circular blade cutting saw, and longitudinal out-feeder.
User-Friendly Control – Equipped with a computer operation interface for simple, intuitive operation.
Efficient Log Feeding – The stepper log feeder ensures that logs enter the in-feeder conveyor one by one, greatly improving efficiency.
Flexible Adjustment – Adjustable to suit various wood sizes and specifications.
Integrated Log Turning Device – Out-feeder section is designed with log turning capability, enhancing productivity.
Provides sharp cutting edges, high wear resistance, and durability at elevated temperatures, ensuring long-lasting performance.
For logs exceeding Φ500mm, the chain saw blade is recommended. It can handle large diameters (up to 1000mm) more effectively than oversized circular blades.
Equipped with two or three cutting blades to increase output. One cutting saw can be matched with up to three veneer peeling lines, reducing investment and maintenance costs.
Secures logs firmly during cutting to prevent movement, ensuring precision, safety, and smooth operation.
Adopts inverter soft start and braking system to protect the heavy blades and motors. Operators can choose between semi-automatic and fully automatic control modes depending on log quality.
The Log Cutting Saw, together with log debarkers and automatic veneer peeling lines, has been exported to many countries, including:
Asia: Malaysia, Indonesia
Europe: Russia, Turkey
South America: Brazil, Argentina, Paraguay
This makes it an ideal choice for plywood and veneer manufacturers worldwide.
