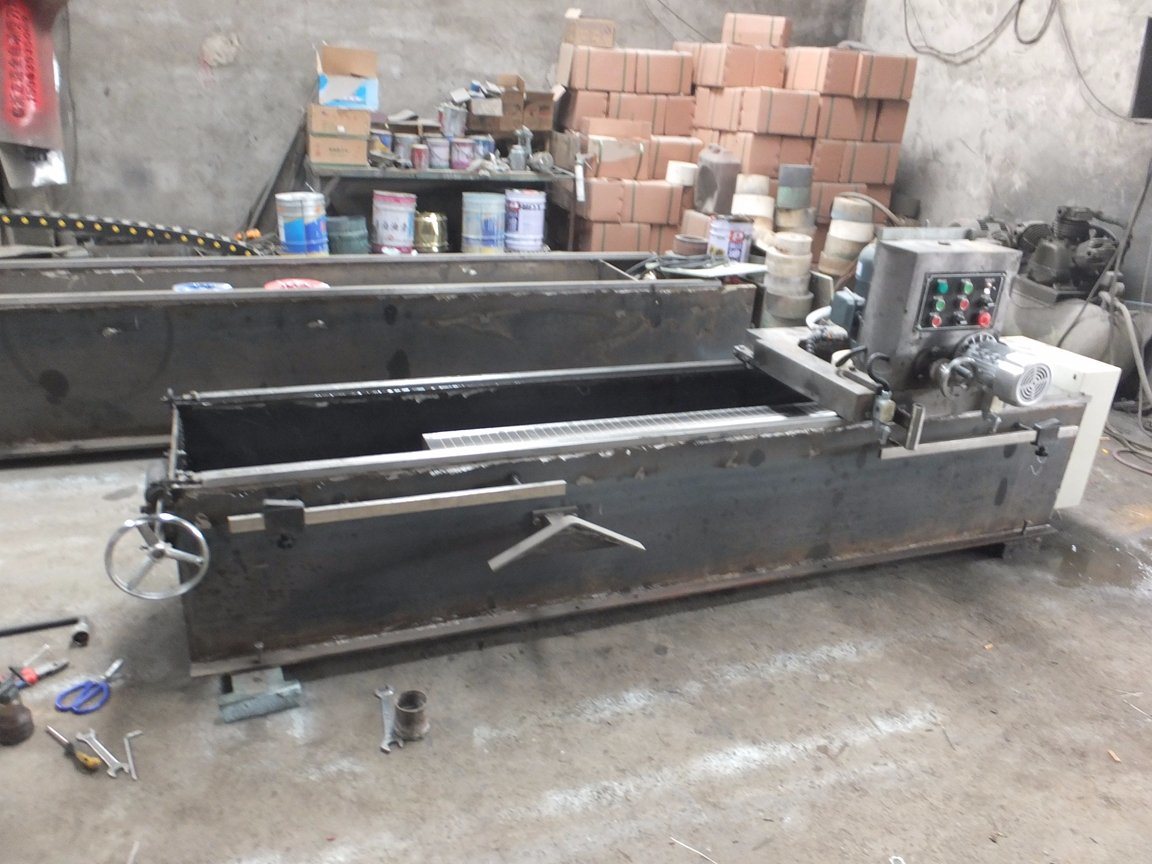

Grinder for Grind Wooden Working Tools, Automatic Grinder, Blade Sharpening

Quantity:
grinder for grind wooden workingtools,automatic grinder,blade sharpening
Product Description:
The machine side bed by national standard double steel liner reinforced floor, the thick plate welding. The effects of treatment, and fully guarantee the stability of the whole machine, no vibration, no deformation.
The machine is made of cast iron casting walking processed without deformation.
The machine running system using precision gear reducer with gear and rack, by using frequency converter, thus to achieve stable using and walking, and great improving the grinding quality and efficiency.


The machine head part adopts a fast lifting device, the repacement tof grinding wheel is more convenient, more efficient, improve the work  efficiency, reduce the labor intensity.
Rational design of the GB special grinding machine grinding head motor, precision grinding, stronger suction, extend the service life.
Special design according to customer's requirement is available.
Product list and technical parameter
Model LMD-MZ7135 LMD-MZ7130 LMD-MZ7120 LMD-MZ7115
Max. grinding length 3600 mm 3200 mm 2200 mm 1600 mm
Working-table width 3350x180(200) mm 3000x180(200) mm 2270x180(200) mm 550x180(200) mm
Whell size(diameter) 200x100x32 mm 200x100x32 mm 200x100x32 mm 200x100x32 mm
Working voltage 380 V 380 V 380 V 380 V
Overall dimensions 5800x1300x1300 mm 5200x1300x1300 mm 4250x1300x1300 mm 3850x1300x1300 mm
Grinding wheel reciprocating speed About 17 m/min About 17 m/min About 17 m/min About 17 m/min
Work tool with adjustable angle ±90° ±90° ±90° ±90°
Grinding head driving mode Transmission(optional frequency dynamic) Transmission(optional frequency dynamic) Transmission(optional frequency dynamic) Transmission(optional frequency dynamic)
Total power About 6 KW About 6 KW About 6 KW About 6 KW
Total weight About 3200 KG About 2800 KG About 2000 KG About 1800 KG

Grinder for Grind Wooden Working Tools, Automatic Grinder, Blade Sharpening
Grinder for Grind Wooden Working Tools, Automatic Grinder, Blade Sharpening
Grinder for Grind Wooden Working Tools, Automatic Grinder, Blade Sharpening
Grinder for Grind Wooden Working Tools, Automatic Grinder, Blade Sharpening

Our after-sale service:

  Grinder for Grind Wooden Working Tools, Automatic Grinder, Blade Sharpening
