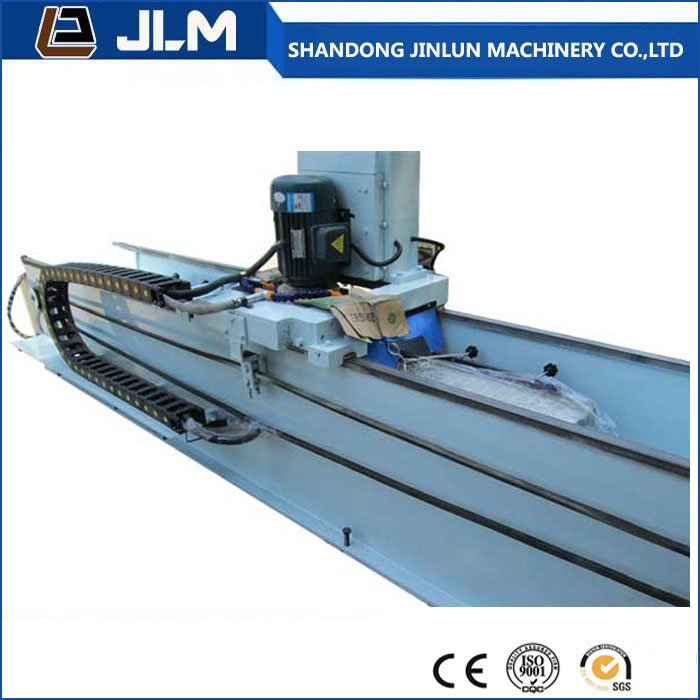

knife grinding machine/veneer peeling knife grinder
1.This machine can work types: straight knife, knife like peeling knife, knife granulator, slicing knife, knife, scissors and so on.
2 Longmen frame design, combined with high quality steel welding, the elimination of internal stress, the elimination of internal stress. The body has a high strength and good rigidity.
3.grinding head with special motor. It can adjust the direction of axial clearance, stable transmission, long service life, high precision.
4 the vertical motion of the ball screw is used to ensure the accuracy.
5 the working platform adopts electromagnetic chuck, and it is very convenient to use a knife. The working table is easy to adjust the angle of the worm wheel and worm.
6 rail with linear guide rail to ensure the stability of the horizontal motion of the grinding head. Taiwan HIWIN linear guide rail imports.
7 use of transducer. Easy to adjust grinding head horizontal and vertical speed.
8 the working accuracy of the machine is 0.01mm
Parameters of knife sharpener
|Max. grinding length||1500mm||3000mm||3500mm|
|Grinding head motor||4kw,380V-50Hz||4kw,380V-50Hz||4kw,380V-50Hz|
|Wheel rotation rate||1400r/min||1400r/min||1400r/min|
|Linear speed for||15m/s||15m/s||15m/s|
|Speed of sliding plate||Variable speed||Variable speed||Variable speed|
|Tilting range for||±90°||±90°||±90°|
|Grinding wheel form||Cup||Cup||Cup|
|Grinding wheel diameter||200mm||200mm||200mm|
