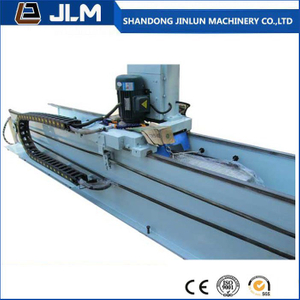

grinder for grind wooden workingtools,automatic grinder,blade sharpening
Product Description:
The machine side bed by national standard double steel liner reinforced floor, the thick plate welding. The effects of treatment, and fully guarantee the stability of the whole machine, no vibration, no deformation.
The machine is made of cast iron casting walking processed without deformation.
The machine running system using precision gear reducer with gear and rack, by using frequency converter, thus to achieve stable using and walking, and great improving the grinding quality and efficiency.

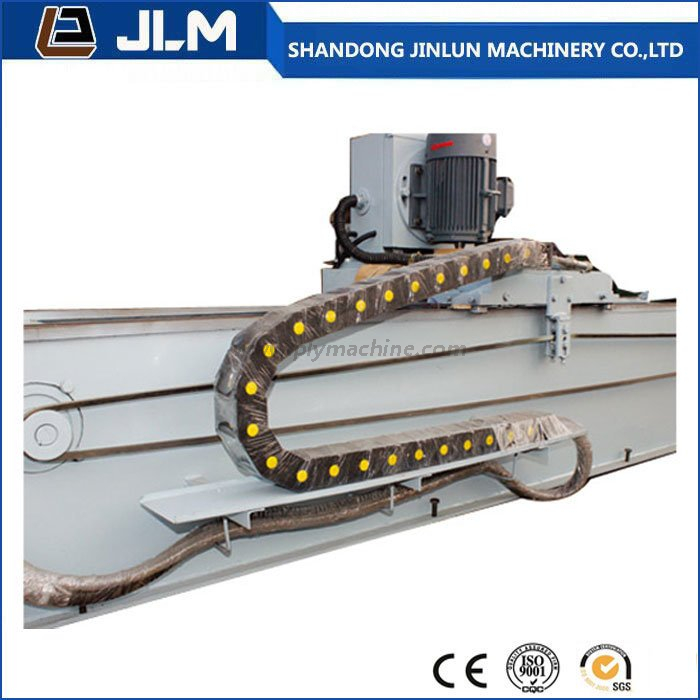

The machine head part adopts a fast lifting device, the repacement tof grinding wheel is more convenient, more efficient, improve the work efficiency, reduce the labor intensity.
Rational design of the GB special grinding machine grinding head motor, precision grinding, stronger suction, extend the service life.
Special design according to customer's requirement is available.
| Product list and technical parameter |
| Model | LMD-MZ7135 | LMD-MZ7130 | LMD-MZ7120 | LMD-MZ7115 |
| Max. grinding length | 3600 mm | 3200 mm | 2200 mm | 1600 mm |
| Working-table width | 3350x180(200) mm | 3000x180(200) mm | 2270x180(200) mm | 550x180(200) mm |
| Whell size(diameter) | 200x100x32 mm | 200x100x32 mm | 200x100x32 mm | 200x100x32 mm |
| Working voltage | 380 V | 380 V | 380 V | 380 V |
| Overall dimensions | 5800x1300x1300 mm | 5200x1300x1300 mm | 4250x1300x1300 mm | 3850x1300x1300 mm |
| Grinding wheel reciprocating speed | About 17 m/min | About 17 m/min | About 17 m/min | About 17 m/min |
| Work tool with adjustable angle | ±90° | ±90° | ±90° | ±90° |
| Grinding head driving mode | Transmission(optional frequency dynamic) | Transmission(optional frequency dynamic) | Transmission(optional frequency dynamic) | Transmission(optional frequency dynamic) |
| Total power | About 6 KW | About 6 KW | About 6 KW | About 6 KW |
| Total weight | About 3200 KG | About 2800 KG | About 2000 KG | About 1800 KG |
Our after-sale service:
Pre-sale services:
1) Provide the free consultation of the equipment
2) Provide the standard device and the flow chart
3) According to the clients' special requirement, offering the reasonable plan and free design to help to select the equipment.
4) Welcome to visit our factory
Services during the sales:
1) Inspect the machine before leaving the factory.
2) Oversea install and debug the equipment
3) Train the first-line operator.
After sale services:
1) 24 hours online service
2) Provide the VIDEO with Install and debug the equipment
3) Provide technical exchanging
4) Door to door service is possible
Contacts:
We are the manufacturer of plywood machine from China . All of our products are with CE approval and special design according to customer's requirement is available.
More details please contact me .
