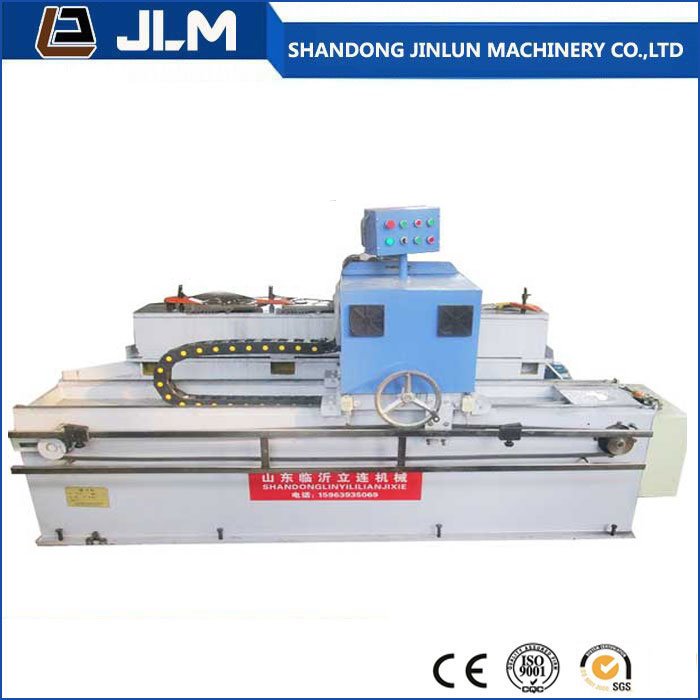

Knife Grinder for Veneer Peeling Machine Woodworking Machine
1.This machine can work types: straight knife, knife like peeling knife, knife granulator, slicing knife, knife, scissors and so on.
2 Longmen frame design, combined with high quality steel welding, the elimination of internal stress, the elimination of internal stress. The body has a high strength and good rigidity.
3.grinding head with special motor. It can adjust the direction of axial clearance, stable transmission, long service life, high precision.
4 the vertical motion of the ball screw is used to ensure the accuracy.
5 the working platform adopts electromagnetic chuck, and it is very convenient to use a knife. The working table is easy to adjust the angle of the worm wheel and worm.
6 rail with linear guide rail to ensure the stability of the horizontal motion of the grinding head. Taiwan HIWIN linear guide rail imports.
7 use of transducer. Easy to adjust grinding head horizontal and vertical speed.
8 the working accuracy of the machine is 0.01mm
Parameters of knife sharpener
| Model | YM1500 | YM3000 | YM3500 |
| Max. grinding length | 1500mm | 3000mm | 3500mm |
| Working-table width | 180mm | 180mm | 200mm |
| Grinding head motor | 4kw,380V-50Hz | 4kw,380V-50Hz | 4kw,380V-50Hz |
| Walking motor | 0.75kw,380V-50Hz | 0.75kw,380V-50Hz | 0.75kw,380V-50Hz |
| Lifting motor | 0.55kw,380V-50Hz | 0.55kw,380V-50Hz | 0.55kw,380V-50Hz |
| Wheel rotation rate | 1400r/min | 1400r/min | 1400r/min |
| Linear speed for | 15m/s | 15m/s | 15m/s |
| grinding wheel | |||
| Speed of sliding plate | Variable speed | Variable speed | Variable speed |
| Tilting range for | ±90° | ±90° | ±90° |
| working-table | |||
| Grinding wheel form | Cup | Cup | Cup |
| Grinding wheel diameter | 200mm | 200mm | 200mm |
| Overall dimension | 3000x1300x1400mm | 5300x1300x1400mm | 5800x1300x1400mm |
| Weight | 1500kg | 2900kg | 3200kg |
