Electromagnetic Knife Grinder Machine/Blade Sharpening Machine

Share to:

Electromagnetic Knife Grinder Machine/Blade Sharpening Machine

Availability:

Quantity:



Inquire Add to Basket

Product Description

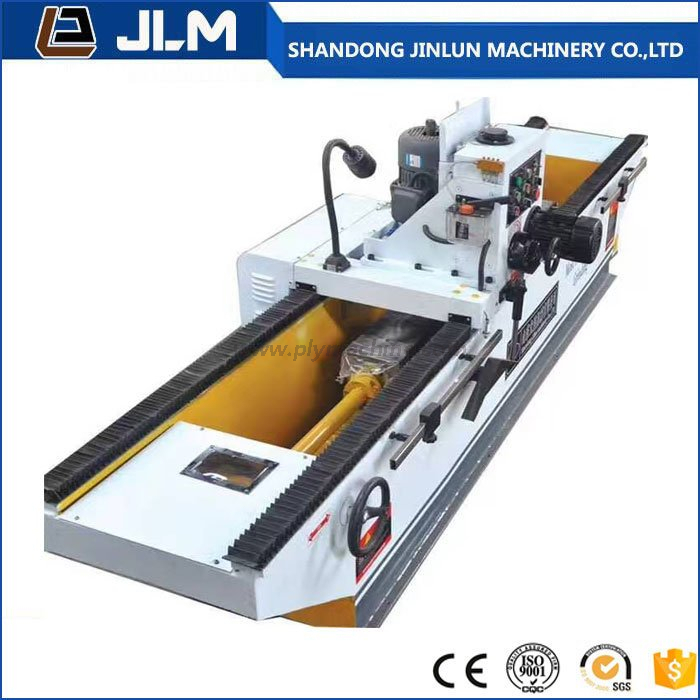

Electromagnetic Knife Grinder Machine/BladeSharpening Machine

Product Description:
The machine side bed by national standard double steel liner reinforced floor, the thick plate welding. The effects of treatment, and fully guarantee the stability of the whole machine, no vibration, no deformation.
The machine is made of cast iron casting walking processed without deformation.
The machine running system using precision gear reducer with gear and rack, by using frequency converter, thus to achieve stable using and walking, and great improving the grinding quality and efficiency.

The machine head part adopts a fast lifting device, the repacement tof grinding wheel is more convenient, more efficient, improve the work efficiency, reduce the labor intensity.
Rational design of the GB special grinding machine grinding head motor, precision grinding, stronger suction, extend the service life.
Special design according to customer's requirement is available.

Product list and technical parameter

Model	LMD-MZ7135	LMD-MZ7130	LMD-MZ7120	LMD-MZ7115
Max. grinding length	3600 mm	3200 mm	2200 mm	1600 mm
Working-table width	3350x180(200) mm	3000x180(200) mm	2270x180(200) mm	550x180(200) mm
Whell size(diameter)	200x100x32 mm	200x100x32 mm	200x100x32 mm	200x100x32 mm
Working voltage	380 V	380 V	380 V	380 V
Overall dimensions	5800x1300x1300 mm	5200x1300x1300 mm	4250x1300x1300 mm	3850x1300x1300 mm
Grinding wheel reciprocating speed	About 17 m/min	About 17 m/min	About 17 m/min	About 17 m/min
Work tool with adjustable angle	±90°	±90°	±90°	±90°
Grinding head driving mode	Transmission(optional frequency dynamic)	Transmission(optional frequency dynamic)	Transmission(optional frequency dynamic)	Transmission(optional frequency dynamic)
Total power	About 6 KW	About 6 KW	About 6 KW	About 6 KW
Total weight	About 3200 KG	About 2800 KG	About 2000 KG	About 1800 KG
