Raw material utilization heavily dictates your overall profitability in plywood production. Since log costs remain static regardless of your factory floor efficiency, peeling yield becomes the ultimate variable you can control. For decades, legacy mechanical lathes relied on physical gears and manual adjustments. These older systems inevitably lead to inconsistent outputs and wasted timber. Modern production floors now demand digitally controlled equipment to maintain exact tolerances and protect profit margins.

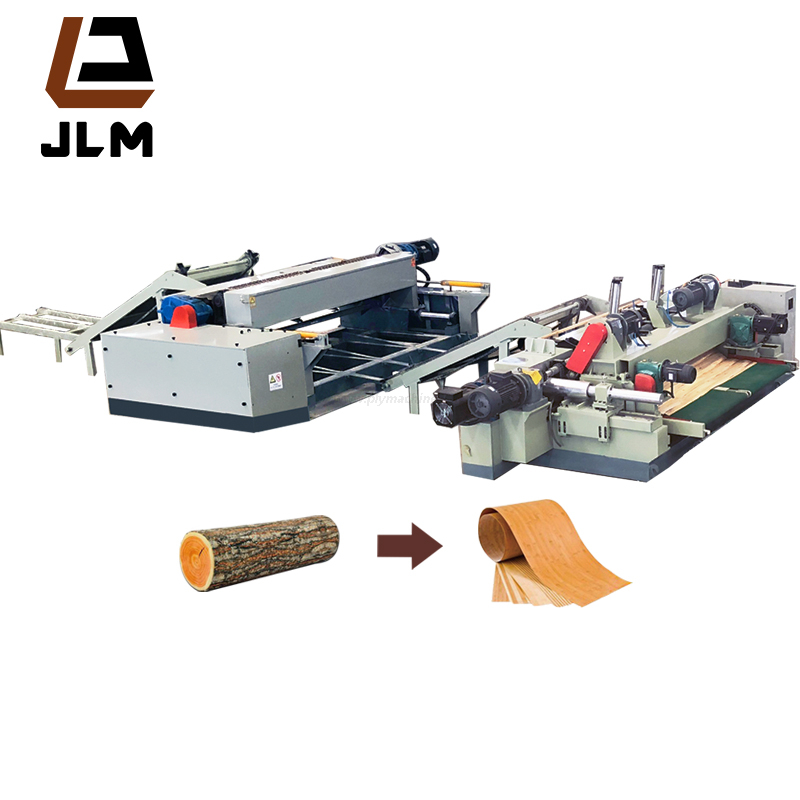

Upgrading to a modern Veneer Peeling Machine offering precise thickness regulation goes far beyond a simple capacity boost. It acts as a direct intervention strategy for your entire process. You will discover how implementing digital controls helps reduce glue waste, minimize panel rejection rates, and maximize usable continuous sheets per log.
Even a 0.05mm variance in veneer thickness can exponentially increase glue consumption and cause delamination in final plywood panels.
A dedicated veneer thickness control system utilizing CNC and servo drives provides dynamic adjustments, compensating for log density and moisture variations.
Evaluating a thickness adjustable veneer lathe requires looking beyond top peeling speed to assess sensor reliability, PLC usability, and drive integration.
Successful implementation requires factoring in operator training curves and strict maintenance protocols for electronic sensors in high-dust environments.
Understanding yield requires looking past sheer volume. We must define yield strictly in terms of usable, continuous veneer sheets. Core waste and rounding off represent lost material. Every millimeter of wood peeled poorly translates directly into lost revenue. High-quality production relies on a continuous ribbon of wood with uniform density and thickness. When your lathe chatters or drifts, your yield plummets instantly.
Uneven peeling creates disastrous downstream effects. It leads directly to thick and thin spots across the sheet. Thick spots cause excessive compression during the hot pressing phase. They absorb all the hydraulic pressure, leaving adjacent areas loose. Thin spots create physical gaps between layers. Operators often overcompensate by increasing the adhesive spread rate. They hope the extra glue will bridge these gaps. This practice drastically drives up chemical consumption. Chemical adhesives represent a massive portion of daily operational expenses. Wasting glue to fix bad peeling destroys margins.
A high-performing plywood veneer manufacturing machine prevents these cascading failures. It must maintain rigorous thickness tolerances. You should expect tolerances within ±0.05mm for face grades. Core layers can typically tolerate ±0.1mm. These specific targets depend heavily on the wood species and target panel grade. Hitting these marks consistently eliminates the need for excess glue.
Variance Type | Immediate Physical Effect | Downstream Production Consequence |
|---|---|---|
Over-thickness (+0.1mm) | Excessive localized density | Crushing in hot press, uneven panel thickness |
Under-thickness (-0.1mm) | Gaps between inner plies | Requires heavier glue spread, risks delamination |
Inconsistent (Wavy) | Varying surface tension | Panel warping after cooling, high rejection rate |
Best Practice: Audit your peeling output twice per shift using digital calipers. Measure the edges and the center of the continuous ribbon to catch alignment drift early.
Mechanical gear-driven feed systems dominated the industry for decades. They use physical gear ratios to advance the knife carriage. Unfortunately, mechanical gears wear down over time. This constant friction introduces backlash. Backlash ruins accuracy because the knife cannot hold a microscopic position. Modern facilities solve this by moving to CNC-driven approaches. Digital logic replaces physical gear meshes.
A dedicated veneer thickness control system relies heavily on a complex feedback loop. Rotary encoders mount directly to the spindle or friction rollers. They read the exact rotation and log diameter instantly. The Programmable Logic Controller (PLC) processes this data in milliseconds. It then commands the servo motors. This constant communication adjusts the knife gap perfectly. The system eliminates the mechanical slop found in older lathes.
Understanding how a servo motor veneer peeling machine operates reveals why it outpaces legacy systems. Advanced setups account for changing log diameters in real-time. As the knife peels away layers, the log shrinks. To maintain a constant surface peeling speed, the log must rotate faster. Simultaneously, the feed rate must adapt. The servo drives manage this dynamic adjustment flawlessly. They also maintain the optimal cutting angle. Fundamental wood-cutting physics dictate that the angle must shift slightly as diameter decreases. This prevents the wood from fracturing or creating a rough surface.
Looking at top peeling speeds tells only part of the story. You must evaluate the underlying architecture. The drive system dictates the machine's true capability. Look for closed-loop vector control in your frequency inverters. Vector control provides high-torque stability at extremely low speeds. This matters when rounding off heavy, irregular logs. It prevents the spindle from stalling under sudden heavy loads.
Next, assess the Human-Machine Interface (HMI). The control panel must be intuitive. Can operators easily switch recipes between different wood species? Softwood requires different feed dynamics than dense hardwood. A premium thickness adjustable veneer lathe allows workers to save and recall these parameters instantly. This reduces changeover time and prevents manual input errors.
Electronic precision requires extreme mechanical rigidity. Micro-vibrations easily negate digital thickness controls. You need heavy-duty cast iron frames. Cast iron dampens vibration far better than welded steel. Linear guideways are also mandatory. They keep the knife carriage tracking smoothly without lateral play. If the frame flexes during operation, your servo motors will constantly overcorrect.
Common Mistake: Falling for "zero waste" marketing claims. Yield remains strictly bound by initial log quality. Digital controls cannot fix poor conditioning. Improperly boiled or steamed logs will still fracture. Unconditioned logs compress unpredictably against the knife. Always view equipment specs through a skeptical, realistic lens.
Drive Architecture: Demand closed-loop vector control for torque stability.
HMI Usability: Ensure touchscreen panels support multiple saved species recipes.
Frame Rigidity: Verify cast iron construction and premium linear guideways.
Sensor Protection: Check IP ratings on all exposed rotary encoders.
Buying advanced equipment represents only the first step. Integrating a high-tech machine into an existing mill environment presents harsh realities. Mills are inherently dusty, humid, and prone to extreme temperature shifts. You must protect delicate electronics from these conditions. Failing to manage the environment destroys expensive components.
Operator adoption frequently becomes a bottleneck. Crews must shift from mechanical troubleshooting to digital diagnostics. An operator used to tightening a physical belt must now read PLC error codes. You cannot expect them to learn this by trial and error. Vendor-supplied PLC training is absolutely critical. Dedicated classroom and machine-side training ensure a smooth transition.
Maintenance realities change drastically with digital lathes. High-precision sensors and rotary encoders are highly sensitive. Sawdust infiltrates standard housings. Resin buildup blinds optical sensors. Factory power surges easily fry complex drive boards. You must establish strict environmental controls to protect your E-E-A-T (Equipment Efficiency and Technical) investments.
Install isolated electrical cabinets with independent climate control.
Upgrade mill grounding systems to prevent servo drive electrical interference.
Implement routine sensor calibration schedules at the start of every maintenance shift.
Mandate daily compressed air cleaning for all encoder housings and linear guides.
Calculating the payback period requires a transparent model. Do not rely on vague estimates. Build your ROI assumptions on three concrete pillars. First, measure the volume of wood saved per shift by eliminating thick/thin rejects. Second, calculate the reduction in glue spread rate. A smoother surface uses significantly less adhesive. Third, subtract your CapEx and projected training downtime. This formula reveals the true financial timeline of your upgrade.
When shortlisting vendors, demand empirical proof. Ask buyers to request actual test data. Have the vendor run logs of your specific species and average density. Review the continuous ribbon for tight tolerances yourself. A reputable manufacturer welcomes this challenge. They will readily share data logs showing motor load and thickness consistency during the test run.
Compliance and safety must finalize your decision. Advanced automated machinery moves rapidly and carries immense force. Ensure the equipment meets all regional safety standards. Look for official CE marking or equivalent certifications. Verify that the servo drives feature emergency dynamic braking systems. If a log splits dramatically, the machine must stop in milliseconds to protect the operator and the spindle.
Investing in precise thickness control fundamentally transforms your production floor. It shifts operations from a volume-based guessing game to a predictable, data-driven manufacturing process. You stop hoping for good yield and start engineering it.
The initial capital expenditure of a servo-driven machine often seems daunting. However, it is rapidly offset. You will see compounded daily savings in raw wood utilization. Simultaneously, your chemical adhesive costs will drop dramatically due to smoother, tighter peeling.
Audit your current thickness variance this week. Take random samples from your existing lathe and measure the deviations. Once you see the hidden waste, request a technical consultation from a trusted manufacturer. Ask for a customized yield-improvement calculation based on your specific daily log volume.
A: While possible, retrofitting often yields disappointing results. Legacy frames suffer from deep mechanical wear. Old gearboxes and worn carriage tracks introduce physical backlash. Even the fastest PLC cannot compensate for a loose frame. Investing in a complete CNC upgrade provides a much more predictable and reliable ROI.
A: Servos perfectly control the mechanical knife gap. However, overly dry or unconditioned logs will still fracture, tear, or compress unpredictably under pressure. High-tech machines read exact dimensions, but they cannot fix poor raw material preparation. Proper boiling and conditioning remain essential for smooth cuts.
A: You should demand realistic, industry-standard benchmarks. Face veneer should hold a tolerance of ±0.05mm. Core veneer should maintain ±0.1mm. Avoid manufacturers pushing unverifiable "zero tolerance" marketing claims. Wood is an organic material, and micro-variations naturally occur even on premium equipment.
