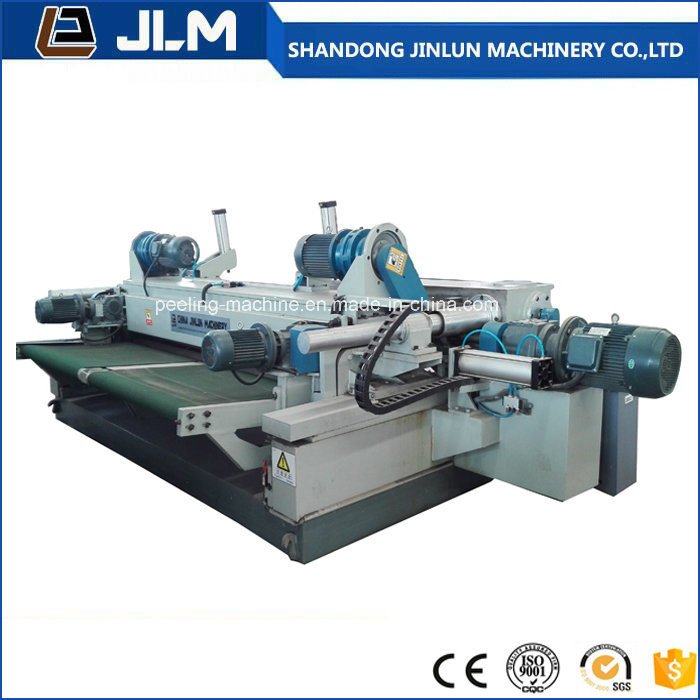

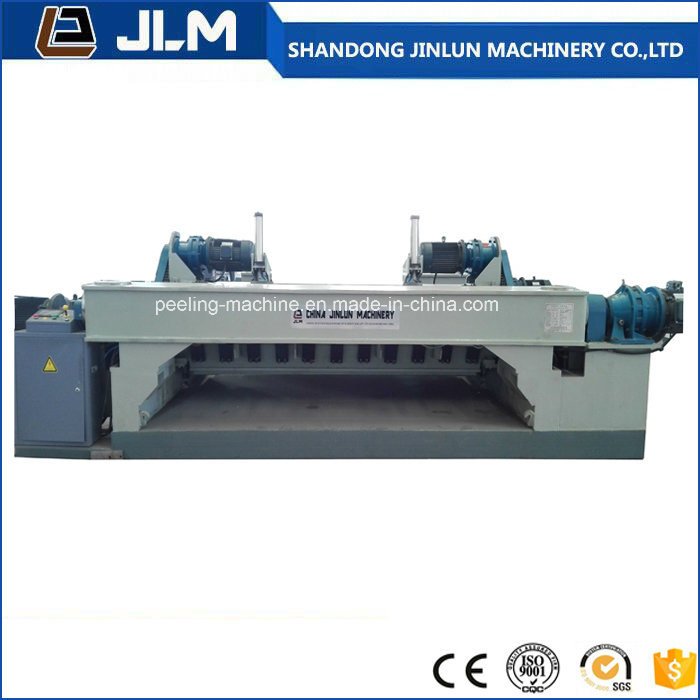

China Factory Supply 8 feet Log Peeling Machine

Quantity:
China factory supply 8 feet log peeling machine
China Factory Supply 8 feet Log Peeling Machine is important equipment in plywood production line and venner production line. it main to peeling off small diameter (max diameter to 700mm),wood and peeling plywood core plate, automatic peeling, cutting board, fast, provincial labor 2-3 people, Veneer size can be set to change, fully automated production. For poplar, pine, birch and so on.
China Factory Supply 8feet Log Peeling Machine China Factory Supply 8feet Log Peeling Machine
China Factory Supply 8 feet Log Peeling Machine
Type 4 feet (1300mm) 8 feet (2600mm)
Model WWXQ130SY-40F WWXQ260SY-50F
Cutting Size 500*1300mm 500*2600mm
(Diameter*Length)
Min Residual 28mm 32mm
Diameter
Max Stroke of 500mm 450mm
Tool Slide
Cutting Thickness 0.5~3.6mm 0.5~3.6mm
Cutting Speed 50m/min 48-65m/min
Power 21.5KW 60 KW
Peeler blade 1400mm*180mm*16mm 2700mm*180mm*16mm
(L*W*H)
Clipper Size 1400mm*90mm*12.7mm 2700mm*90mm*12.7mm
(L*W*H)
Dimensions 4100mm*2150mm*1600mm 6100mm*2200mm*1650mm
(L*W*H)
Total Weight About 6000KG About 11000KG

Advantage of peeler :
1.servo motor drive, precision screw feed, ensure the thickness of ± 0.05 mm ; width  ± 0.05 mm uniform section.
2. Hydraulic on the knife, get rid of mechanical trouble, easy maintenance.
3.Automatically adjust knife, even in the peeling,still adjust the thickness of two different veneer,
4. Friendly user interface can help operators find any problems in time.
5. Two-in-one structure, peeling and cutting together, reducing costs
6. Power-saving, simple operation, easy maintenance

China Factory Supply 8feet Log Peeling Machine
Details of machine :

China Factory Supply 8feet Log Peeling Machine

Q&A:
1. Q: Are you a factory or a trading company?
A: We are a factory who manufacture the machine by ourself. We have 2 factoies and 1 trading company.
2. Q: What is the delivery time?
A: Normally will be 30 days after getting deposit or original LC.
3. Q: What is the maintenance period? What kinds of after-sale service do you support?
A: 1 year after delivery. We supply telephone after-sale service, video service and e-mail service. If can not deal with the problem, our tech-staff will go abroad to service.
4. Q:What is the payment terms?
A:a.T/T(30% deposit, 70% before delivery in FOB or 70% paied against copy of B/L in CFR)
b. 100% irrevocable L/C at sight.
5. Q: Can we visit your factory?
A: Welcome to visit us! Everyday we have customers from different countries. By now, we have exported to more than 20 countries customer.

Our services:
1.We will send our engineer under your indications to  your  factory  for  installing,  debugging  and  maintaining,  you only need to afford the cost of the flights, and  the engineer's accommodation .
2.If you are experienced in installing jobs,  we  will  provide ongoing  technical support for you.
Guarantee time for the main parts of the machine will be 12 months, in this period, if the machines itself  have the problem, we will freely maintain it, but not including the problem caused by the wrong or rough operation.
3.The buyer sends people to seller's factory for study:
one month and one person. The buyer should pay for the round air fare, and the seller arrange for food and accommodation, and the service including: the machine's fixing, debugging, operating, maintaining.
4.After the warranty, we can also supply the engineer service and the technical service, but  you need to  pay  the salary for the engineer! and afford the cost of the replaced aparts yourself. More service, you can get by send us an e-mail or a fax.

After Sale service:
Pre-sale services:
1) Provide the free consultation of the equipment
2) Provide the standard device and the flow chart
3) According to the clients' special requirement, offering the reasonable plan and free design to help to select the equipment.
4) Welcome to visit our factory

Services during the sales:
1) Inspect the machine before leaving the factory.
2) Oversea install and debug the equipment
3) Train the first-line operator.

After sale services:
1) 24 hours online service
2) Provide the VIDEO with Install and debug the equipment
3) Provide technical exchanging
4) Door to door service is possible

Contacts:
We are the manufacturer of plywood machine from China . All of our products are with CE approval and special design according to customer's requirement is available.
More details please contact us .
