Wood No Chuck Veneer Peeling Machine

Availability:
Quantity:

Wood Non Chuck Veneer Peeling Machine

Wood No Chuck Veneer Peeling Machine is important equipment in plywood production line and venner production line.  it main to peeling off small diameter (max diameter to 700mm),wood and peeling plywood core plate, automatic peeling, cutting board, fast, provincial labor 2-3 people, Veneer size can be set to change, fully automated production. For poplar, pine, birch and so on.

Wood Non Chuck Veneer Peeling Machine

PRODUCT SPECIFICATION:

Max length of wood

1300mm

Max diameter of wood

500mm

Left wood diameter

28mm

Veneer peeling thickness

0.4-3.6 mm

Size of peeler blade

1500*180*16mm

Peeling speed

60 m/min

Total Power

32kw

 weight

6000KG

Output

30-35 cubic meter

Payment terms

T/T 30%,Balance before loading

Delivery time

about 25 days after received deposit

FEATURES:
1 Using servo motor drive precision screw feed.
2. Different wood species can also be cut together without affecting the thickness of the board.
3. Venner surface finish is good, the reaction of wood back and front is not sensitive.
4. Change thickness of venner only need to enter the number of figures, needless to replace gear,high precision
5. Power saving, simple operation, easy maintenance.


  Details of machine :

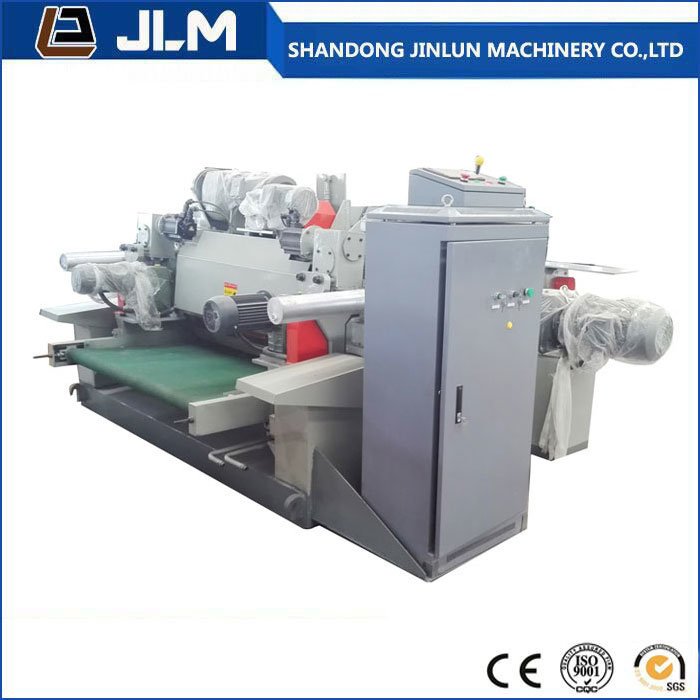

  Wood Non Chuck Veneer Peeling Machine
  Q&A:
1. Q: Are you a factory or a trading company?
A: We are a factory who manufacture the machine by ourself. We have 2 factoies and 1 trading company.
2. Q: What is the delivery time?
A: Normally will be 30 days after getting deposit or original LC.
3. Q: What is the maintenance period? What kinds of after-sale service do you support?
A: 1 year after delivery. We supply telephone after-sale service, video service and e-mail service. If can not deal with the problem, our tech-staff will go abroad to service.
4. Q:What is the payment terms?
A:a.T/T(30% deposit, 70% before delivery in FOB or 70% paied against copy of B/L in CFR)
b. 100% irrevocable L/C at sight.
5. Q: Can we visit your factory?
A: Welcome to visit us! Everyday we have customers from different countries. By now, we have exported to more than 20 countries customer.

Our services:
1.We will send our engineer under your indications to  your  factory  for  installing,  debugging  and  maintaining,  you only need to afford the cost of the flights, and  the engineer's accommodation .
2.If you are experienced in installing jobs,  we  will  provide ongoing  technical support for you.
Guarantee time for the main parts of the machine will be 12 months, in this period, if the machines itself  have the problem, we will freely maintain it, but not including the problem caused by the wrong or rough operation.
3.The buyer sends people to seller's factory for study:
one month and one person. The buyer should pay for the round air fare, and the seller arrange for food and accommodation, and the service including: the machine's fixing, debugging, operating, maintaining.
4.After the warranty, we can also supply the engineer service and the technical service, but  you need to  pay  the salary for the engineer! and afford the cost of the replaced aparts yourself. More service, you can get by send us an e-mail or a fax.

After Sale service:
Pre-sale services:
1) Provide the free consultation of the equipment
2) Provide the standard device and the flow chart
3) According to the clients' special requirement, offering the reasonable plan and free design to help to select the equipment.
4) Welcome to visit our factory

Services during the sales:
1) Inspect the machine before leaving the factory.
2) Oversea install and debug the equipment
3) Train the first-line operator.

After sale services:
1) 24 hours online service
2) Provide the VIDEO with Install and debug the equipment
3) Provide technical exchanging
4) Door to door service is possible

Contacts:
We are the manufacturer of plywood machine from China . All of our products are with CE approval and special design according to customer's requirement is available.
More details please contact us .
