Hydraulic Cold Press Machine for Multilayer Board Making From China

Quantity:
Hydraulic cold press machine for multilayer board making from China
Product Description:

Specifications

Strong rigidity
Ensure high pressure
Long working life
Automatic hydraulic control systerm
Accurate pressure control

Automatic hydraulic cold press machine for plywood/laminate press machine

cold press machine description

1  The main frame is welded by good quality NO1 standard steel plate, good design of frame and structure,strong rigidity,and ensure high preasure

2  It has good quality cylinders, the main hydralic parts are imported, so it has long working life

3 It has automatic hydralic control systerm, high working efficiency

cold press machine specification


Max pressure 400 Ton
Max opening 1700 mm
Working size 1370*2700mm
Cylinders 2*320 mm
Stroke of the cylinder 800 mm
Systerm pressure 25 MPA
Total power 15 kw
overall size 3500*1440*4200 mm
Weight 13000 KG

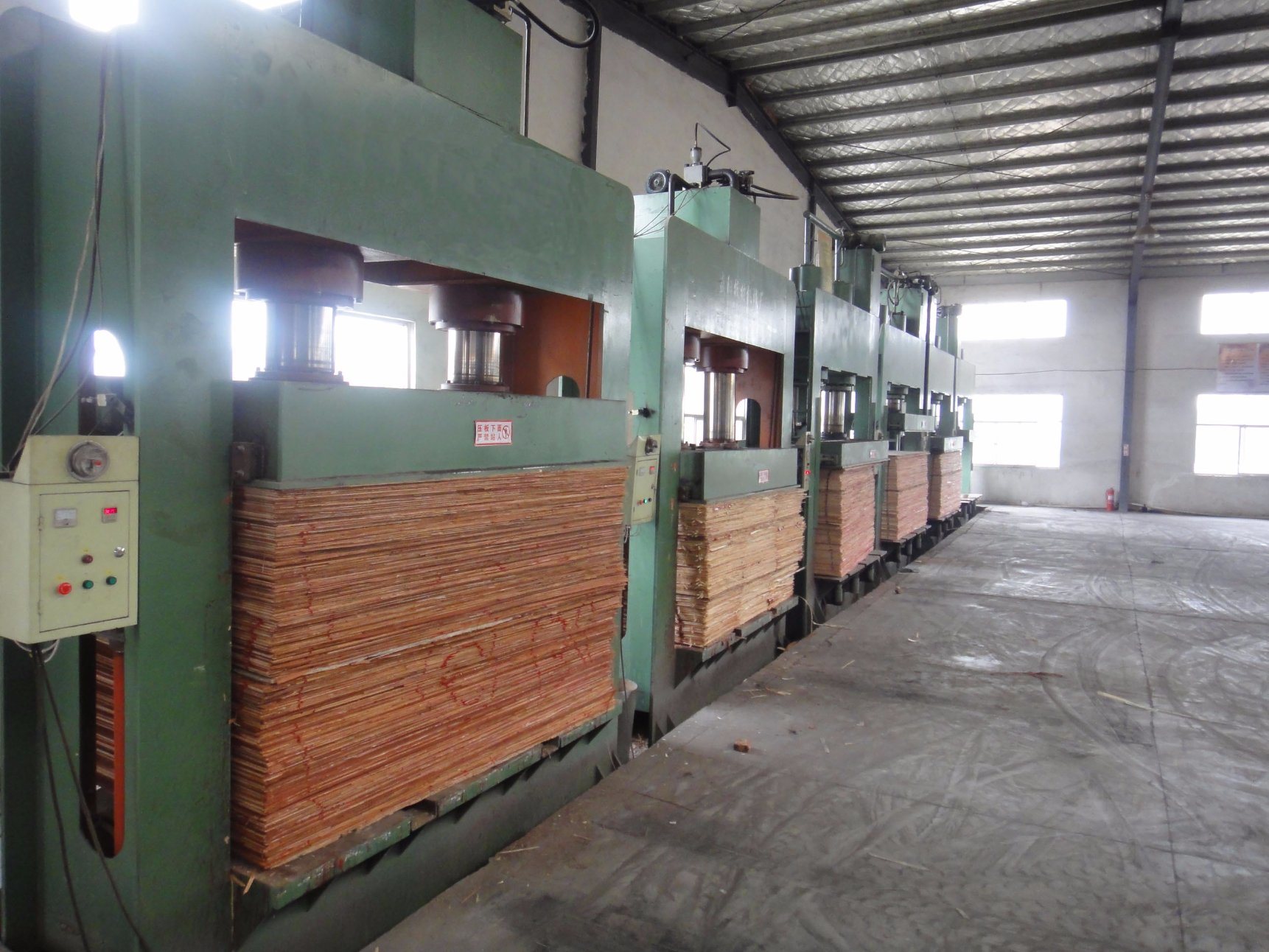

Working photos:

Hydraulic Cold Press Machine for Multilayer Board Making From China
Hydraulic Cold Press Machine for Multilayer Board Making From China
Hydraulic Cold Press Machine for Multilayer Board Making From China
After-sale service:

Hydraulic Cold Press Machine for Multilayer Board Making From China
