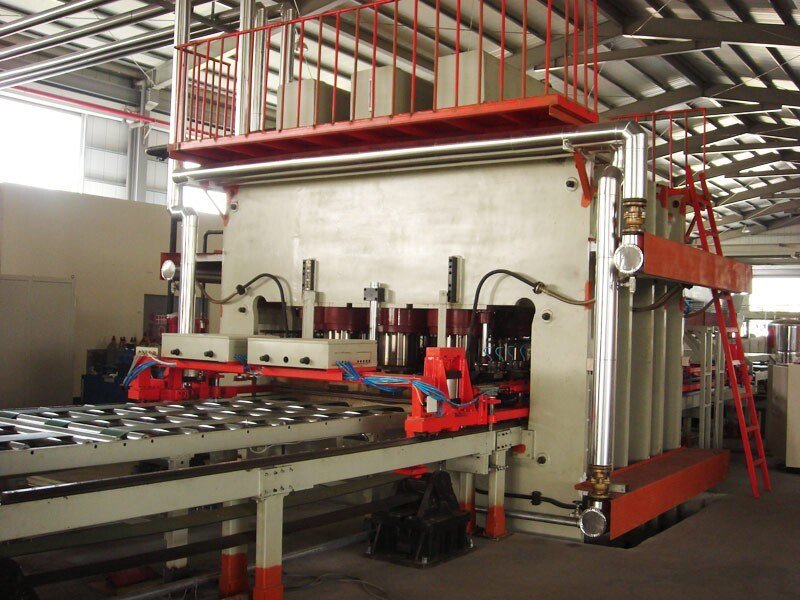

1. Framework adopt high quality steel, heighten and thicken, solid and durable.
2. New model high grade pump station, lower noise, more stable performance.
3. Adopting new model four-bar linkage synchronizer, synchronous effect more stable.
4. Cylinders adopt high temperature resistance oil seal and macromolecule heat insulation board
5. All adopt high grade electrical appliance and hydraulic parts, very low failure rate.
6. Professional custom 4*8ft, 6*8ft, and 6*12ft short cycle melamine laminate hot press and production line.
| SPECIFICATIONS FOR SHORT CYCLE HOT PRESS MACHINE | |||
| Type | 6*9 Feet | 4*8 Feet | 4*8 Feet |
| Total pressure (T) | 1800T | 1600T | 1200 T |
| Into board direction | Crosswise | Crosswise | Crosswise |
| Number of layers | Single layer | Single layer | Single layer |
| Layer-to-layer spacing | 200MM | 200MM | 200MM |
| Hot pressing plate number | 2 | 2 | 2 |
| Breadth size | 2900*2000*140mm 2900*2000*120mm | 2600*1400*140mm 2600*1400*100mm | 2600*1400*140mm 2600*1400*100mm |
| Plunger cylinder number | 9 | 6 | 6 |
| Diameter | 320mm(WUXI) | 360mm(WUXI) | 320mm(WUXI) |
| Stroke | 200MM | 200MM | 200MM |
| Resistance to pressure | ≤25Mpa | ≤25Mpa | ≤25Mpa |
| No-load closing time | 5s | 5s | 5s |
| Low-pressure pump flow | 320ml/r | 320ml/r | 320ml/r |
| Power | 22kw | 18.5kw | 18.5kw |
| Control mode | Automatic station | Automatic station | Automatic station |
| Frame form | Skeleton type | Skeleton type | Skeleton type |
| Fluctuation beam | 900mm | 900mm | 900mm |
| Thickness of steel pipe | 50mm,30mm,20mm | 50mm,30mm,20mm | 45mm,30mm,20mm |
| Stand column | 400mm | 400mm | 400mm |
| Voltage | 380V | 380V | 380V |
| Weight | 48T | 38T | 32T |
