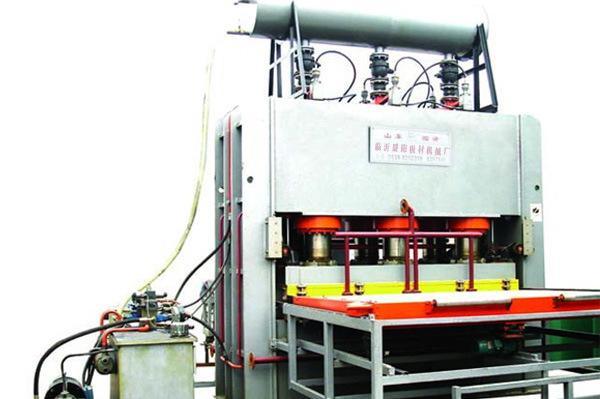

Short Cycle Melamine Hot Press Machine for The Plywood Film Face Veneer

Availability:
Quantity:
Hot sale 1200 T 4*8 short cycle melamine  hot press machine

Latest 1200T short cycle hot press machine for facing melamine pepAr plywood. It takes only 10-30 seconds to facing the melamine paper to the plywood core.



structural Features of Hot Press Machine



1. Heating Platen
The heating platen is made from a carbon steel plate with drilled holes for strength and durability. A working table of 2700mm*1370mm allows users to easily operate the wood working machine.
2. Heating System
The hot press comes with a special heating system which employs a heat transference oil boiler that features a counter current flow and a high temperature, and lowers the system pressure to meet safety requirements. The heat system's closed circulation transfers energy via liquid, thus reducing heat loss and saving overall energy.
3. Hydraulic System
This type of hot press is a hydraulic plywood press with adjustable hydraulic pressure.
4. Oil Cylinder
The oil cylinder is made with high precision tools, and sealants prevent oil from leaking.
5. Control System
Our hot press is equipped with a microcomputer control system for both manual and automatic control. With a simple push of a button you can control a whole set of processes including pressing plate ascending, closing, pressure adding, pressure maintaining, timing and pressing plate descending.

SPECIFICATIONS FOR SHORT CYCLE HOT PRESS MACHINE
Type
6*9 Feet
4*8 Feet
4*8 Feet
Total pressure (T)
1800T
1600T
1200 T
Into board direction
Crosswise
Crosswise
Crosswise
Number of layers
Single layer
Single layer
Single layer
Layer-to-layer spacing
200MM
200MM
200MM
Hot pressing plate number
2
2
2
Breadth size
2900*2000*140mm
2900*2000*120mm
2600*1400*140mm 2600*1400*100mm
 2600*1400*140mm 2600*1400*100mm
Plunger cylinder number
9
6
6
Diameter
320mm(WUXI)
360mm(WUXI)
320mm(WUXI)
Stroke
200MM
200MM
200MM
Resistance to pressure
≤25Mpa
≤25Mpa
≤25Mpa
No-load closing time
5s
5s
5s
Low-pressure pump flow
320ml/r
320ml/r
320ml/r
Power
22kw
18.5kw
18.5kw
Control mode
Automatic station
Automatic station
Automatic station
Frame form
Skeleton type
Skeleton type
Skeleton type
Fluctuation beam
900mm
900mm
900mm
Thickness of steel pipe
50mm,30mm,20mm
50mm,30mm,20mm
45mm,30mm,20mm
Stand column
400mm
400mm
400mm
Voltage
380V
380V
380V
Weight
48T
38T
32T


Short Cycle Melamine Hot Press Machine for The Plywood Film Face Veneer
Short Cycle Melamine Hot Press Machine for The Plywood Film Face Veneer
After-sale service:

Short Cycle Melamine Hot Press Machine for The Plywood Film Face Veneer
