CNC Control 4 Feet Log Veneer Peeling Lathe for Plywood

Share to:

CNC Control 4 Feet Log Veneer Peeling Lathe for Plywood

Availability:

Quantity:



Inquire Add to Basket

Product Description

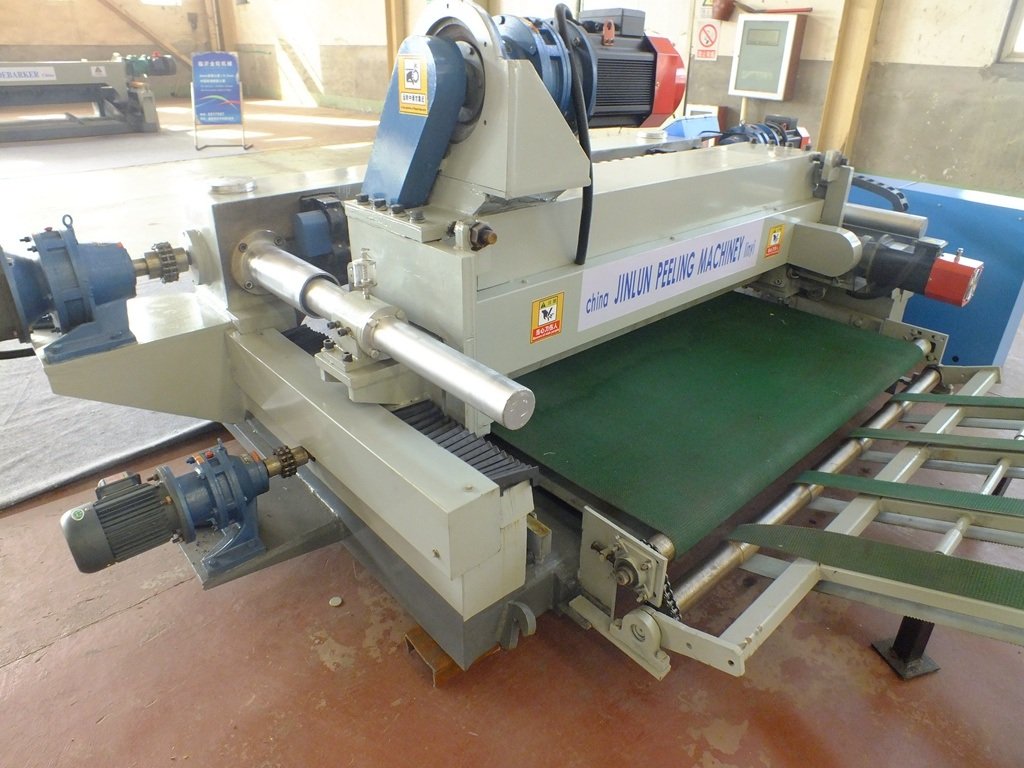

New type automatic CNC control 1300 mm veneer peeling lathe

Product Description:
Spindle-less veneer peeling machine is one of the equipment for the production of plywood, which belongs to the mechanical spindleless rotary cutting transmission machine, suitable for lathe cutting remaining wood core to continue into veneer, also can be applied to small diameter wood (diameter 300mm) into veneer.These advantages like those:
1,Processing of the board thickness uniform, surface smooth;
2,reasonable structure, easy operation and maintenance;
3,equipment performance is stable, less wearing parts, long life;
4,saving timber resources.
5,Artificial technical requirements are not high,in the normal peeling the machine,the error in ± 0.1mm

Max length	1300 mm
Max diameter	500 mm
Mini residual log diameter	28 mm
Veneer thickness	0.5 - 3.6 mm
Peeling speed	45 - 65 m/min
Power	21.5 KW
Overall size	280021001350 mm
Weight	about 3500 KG
