CNC Spindle-Less Veneer Peeling Machine | High-Speed Rotary Core Veneer Lathe

Veneer peeling Machine produce

|

Product Introduction：

4 feet Veneer peeling Machine

8 feet Veneer peeling Machine

Customize any size

The veneer peeling machine greatly improves veneer quality, production precision, and overall efficiency. As a key part of plywood manufacturing, the complete peeling line includes a log conveyor, debarker, log position corrector, veneer peeling machine, and stacker, along with custom-designed waste conveyors. Widely adopted in veneer and plywood production lines, this machine is essential for achieving high automation and consistent output.

|

Product Video：

|

Technical Parameters：

Model	JLXQ130-50BB	JLXQ260-50BB
Maximum log length	1300mm	2600mm
Maximum log diameter	500mm	500mm
Blade size	150018016mm	270018016mm
Veneer thickness	0.6-3.6MM	0.6-3.6mm
thickness tolerance	±0.075mm	±0.075mm
working speed	40-100m/min	40-100m/min
product capacity	35-50m³/day	70-100m³/day
veneer cutting width	>400mm	>400mm
Roller diameter	101/125mm	101/125mm
Total power	47kw	73kw
Double roller power	2*7.5kw	2*15kw
Single roller power	2*7.5kw	2*11kw
Feeding power	11kw(servo motor)	15kw(servo motor)
Clipper power	1.5kw(servo motor)	3kw(servo motor)
conveyor power	1.5kw	3kw
Weight	7500kgs	12500kgs
Overall size	460022001550mm	620022001650mm

| Product Advantage：

1、Japan Bearings for Stable Performance

Equipped with Japan-made bearings, our spindle-less veneer peeling machines and rotary veneer peeling machines deliver exceptionally smooth and steady operation, ensuring long-term durability and reduced maintenance for high-performance wood veneer production.

2、T10 Reducer for Precision Transmission

The advanced T10 reducer provides low vibration, quiet operation, and smooth transmission. This key component enhances the efficiency of our CNC veneer peeling machines, custom wood veneer peeling machines, and small veneer peeling machines, ensuring consistent and reliable output.

3、Hydraulic Knife Holder for Easy Operation

The hydraulic knife holder design significantly reduces manual labor and allows for simple, automated operation. It’s a core feature across our automatic veneer peeling machines, especially useful in combined veneer peeling machines where quick adjustments and minimal downtime are essential.

4、Automatic Knife Adjustment with Double Convex Rail Structure

Featuring a double convex rail design, the automatic knife adjustment system offers greater accuracy, speed, and stability than traditional single-rail systems. Integrated across our high-speed veneer peeling machines, this innovation eliminates manual screw adjustments, saving labor and increasing precision.

5、Labor-Saving, High-Precision Engineering

Designed with a focus on automation and efficiency, our special core veneer peeling machines and double roller wood veneer peeling machines incorporate user-friendly controls, automatic adjustments, and optimized cutting dynamics—making them ideal for operations seeking maximum productivity with minimal manpower.

|

Machine Details：

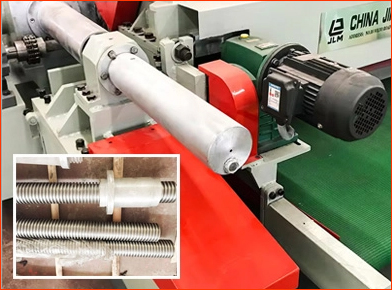

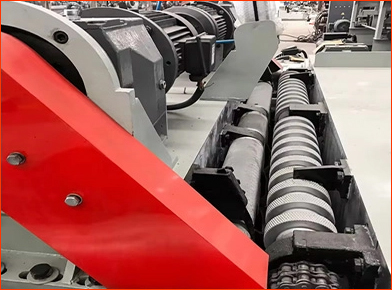

Peeling Machine Roller

The roller is made from durable No.45 steel, with a chrome-plated and heat-treated surface to enhance hardness and wear resistance. This ensures the veneer peeling machine operates smoothly and reliably under continuous use.

High-Durability Screws and Nuts

The screws and nuts are oil-lubricated to reduce wear and dissipate heat efficiently. This design extends service life and helps maintain cutting precision, directly impacting veneer quality.

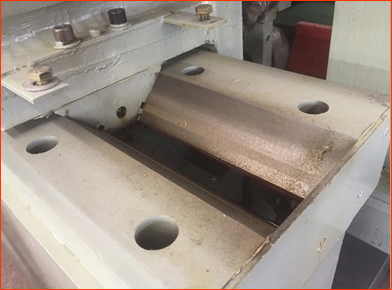

High-Precision Cast Guide Railst

Our machines use cast guide rails similar to those in precision lathes. These rails are resistant to damage and deformation, ensuring the feeding system moves accurately with the control program. Built to last, they require no replacement over the machine’s life.

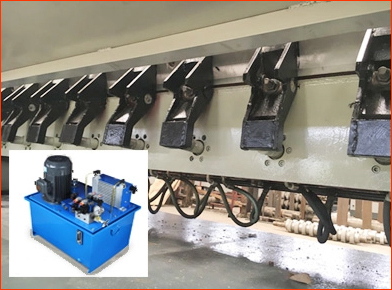

Hydraulic Blade Change System

With a hydraulic blade changing system, operators simply press a button to open or close the blade clamp. This setup saves time, reduces manual effort, and increases daily efficiency.

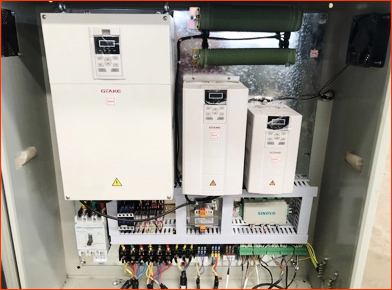

Advanced Control System with Remote Support

We use top brands like Siemens and ABB for core electrical components. Our in-house control software supports customized functions, remote troubleshooting, and online updates through a built-in internet connection.
