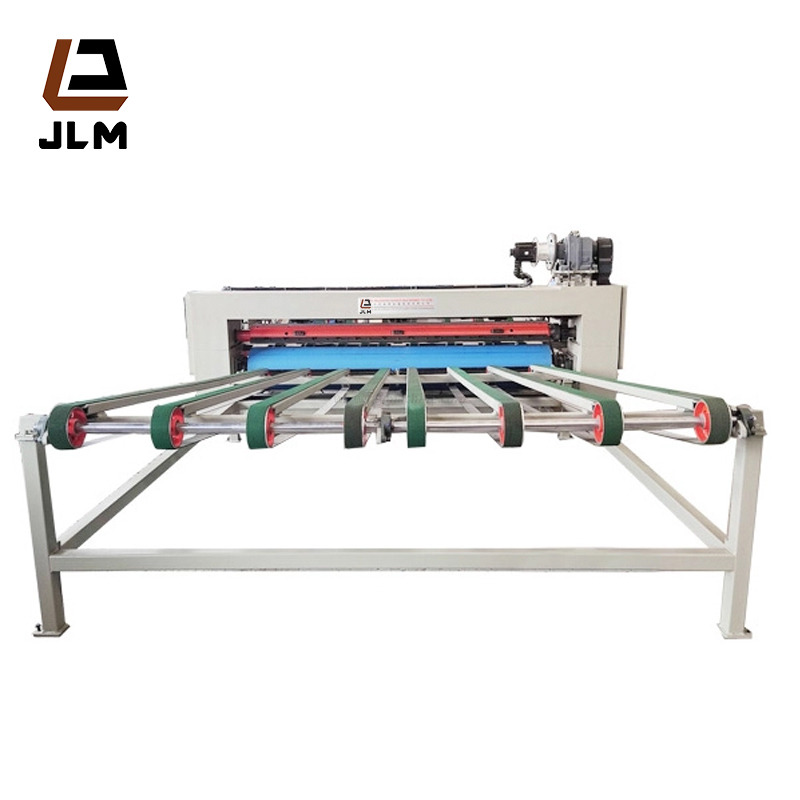

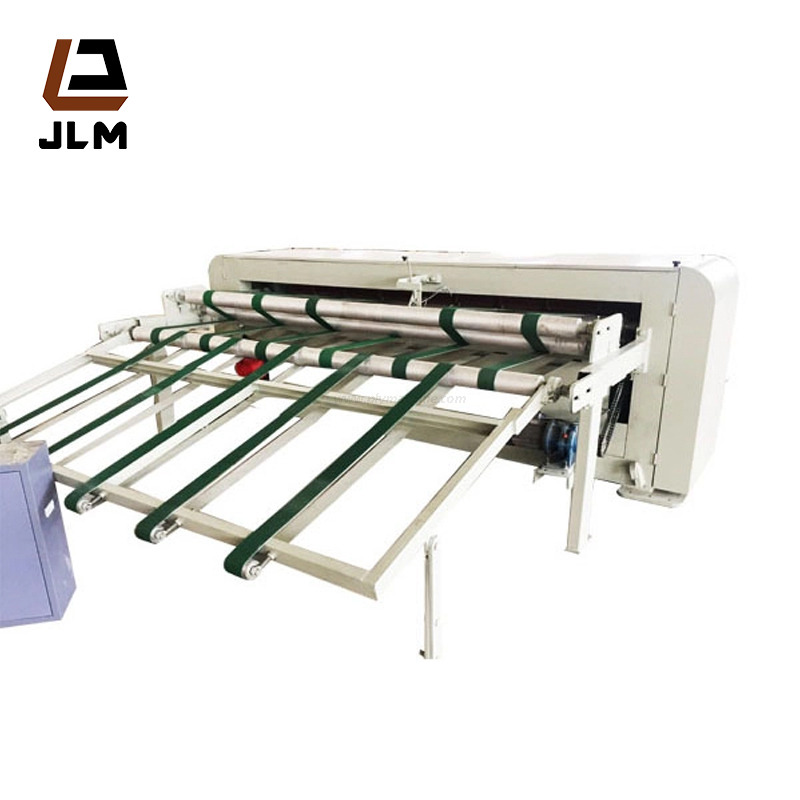

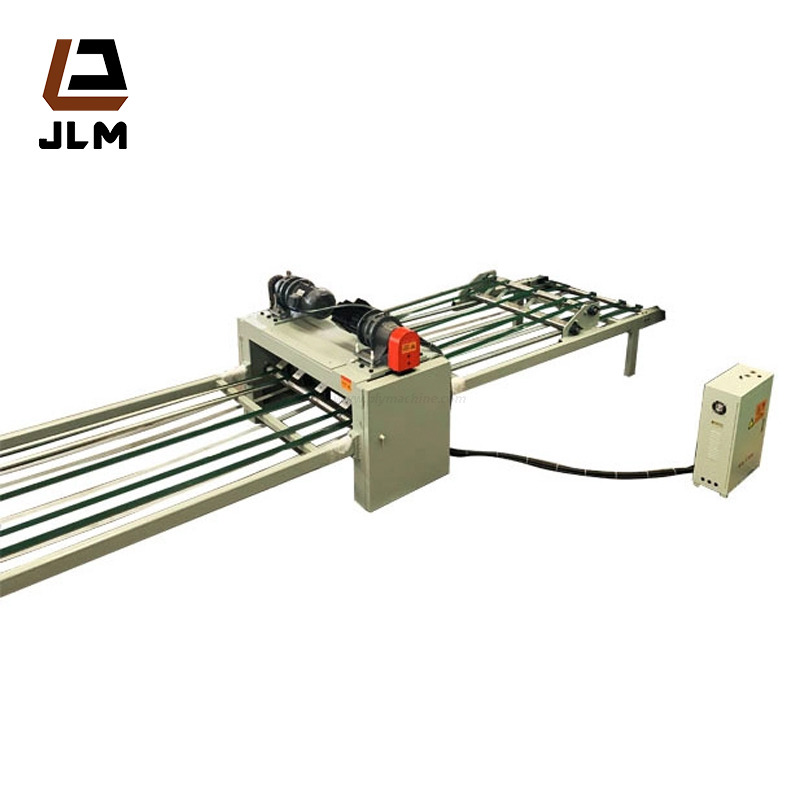

The Veneer Clipper (Veneer Cutting Machine / Veneer Guillotine) is a key machine in plywood production, designed to cut veneer sheets peeled from the veneer peeling lathe into the required width. By adopting a high-speed alloy knife and stable support drum, the clipper achieves precise veneer cutting within 1/20 second per stroke, ensuring efficiency and accuracy.
It can work as a core veneer clipper or face veneer clipper, and its speed is fully synchronized with veneer peeling machines, making it an essential part of an automatic plywood veneer production line.
| Model | JQZ1500 | JQZ2700 | JQZ3300 |
|---|---|---|---|
| Max working width | 1500mm | 2700mm | 3300mm |
| Knife quantity | 1–3 pcs | 1–3 pcs | 1–3 pcs |
| Cutting power | 5.5kW | 7.5kW | 11kW |
| Transport power | 4kW | 5.5kW | 7.5kW |
| Cutting speed | 0–100m/min (adjustable) | 0–100m/min (adjustable) | 0–100m/min (adjustable) |
| Max feeding speed | 100m/min | 100m/min | 100m/min |
| Veneer thickness | 0.3–4.0mm | 0.3–4.0mm | 0.3–4.0mm |
| Cutting method | Mechanical / Pneumatic | Mechanical / Pneumatic | Mechanical / Pneumatic |
| Weight | 2200kgs | 3300kgs | 3800kgs |
| Overall size | 6000×2684×1740mm | 6000×3860×1740mm | 6700×3860×1740mm |
Heavy-Duty Construction – Strong frame with high-quality components ensures machine stability and long service life.
Seamless Integration – Matches the veneer peeling machine’s working speed for synchronized cutting.
Customizable Design – Veneer clipper or guillotine can be tailored to your required veneer dimensions.
High Precision – Equipped with an encoder system for real-time feedback control, ensuring accurate veneer cutting size.
Automatic Operation – CNC control with servo-driven knife shaft and conveyor for high efficiency, cutting speed up to 100m/min.
Roller diameter: 250mm, larger than standard.
Made from durable hard rubber, wear-resistant and long-lasting.
Reduced maintenance frequency and longer working life.
Adjustable blade quantity (1–3 pcs).
Supports small piece veneer cutting and wider application range.
Collects veneer size and feeds back to control system.
Builds a closed-loop control circle for cutting precision.
CNC control with servo motor system.
Supports automatic trimming and stable cutting speed.
Up to 100m/min high-speed cutting for maximum efficiency.
The Core/Face Veneer Clipper is widely used in:
Plywood factories
Veneer production lines
Automatic veneer peeling & cutting systems
We have successfully designed veneer clippers for 2ft, 4ft, 8ft, 10ft, and 12ft veneer rotary cutting machines, meeting diverse plywood production requirements worldwide.
