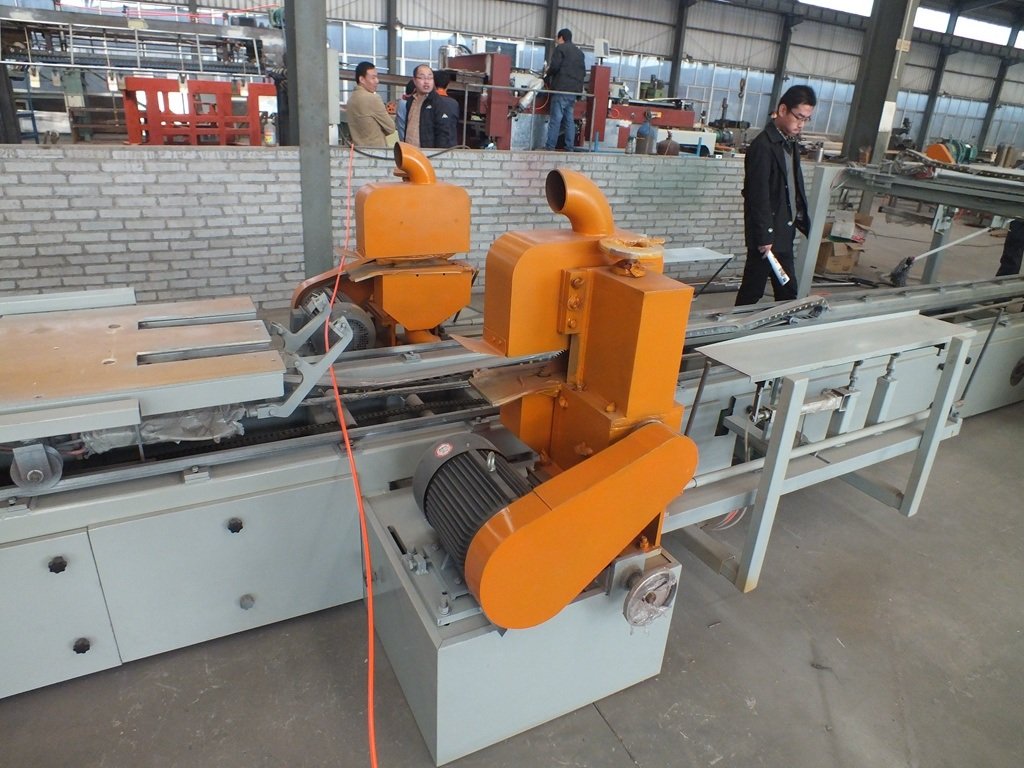

Advantages of edge trimming saw :
1. The main structure is strong with enoughrigidity and high stability.
2. It has pre-loader device, the prduction capacity and efficiency is high: one shift working can produce 4000-5000(18mm).
3. This saw has high precision anti-wearing guide rail, high precision cutting.
4. All working process is controlled by PLC, cutting and stacking is automatic.
5. It has a device to clear the edge waste away automatically.
6. This machine only needs 2 workers, it can save the cost of labor.
7. This saw very good dust collecting system, it will collect all dust of the machine, and dust exhaust in strong force.
| Model | FSS48/36H |
| Cutting length | 1830-2600 mm |
| Cutting width | 900-1300 mm |
| Cutting thickness | 3-55 mm |
| Cut size | 4*8 / 3*6 Feet |
| Rotatinal speed of main saw | 5000-6500 RPM |
| Saw speed | 40-70 m/min |
| Overall dimensions | 8000*5000*1200 mm |
| Power | 34.8 KW |
| Control method | PLC control |
| Machine weight | About 6000 KG |
