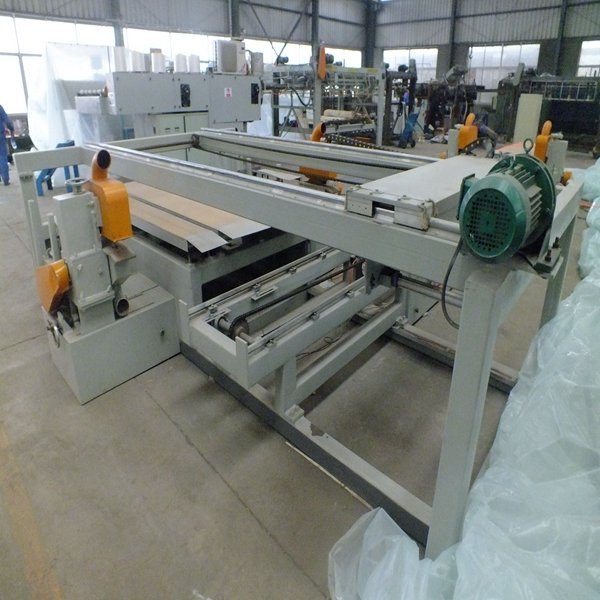

Double Edge High Precision Plywood Edge Trimming Saw
Automatic Plywood Double Sizer/Four-edge trimming saw/Precision Plywood Edge Cutting Machine
Advantages of edge trimming saw :
1. The main structure is strong with enoughrigidity and high stability.
2. It has pre-loader device, the prduction capacity and efficiency is high: one shift working can produce 4000-5000(18mm).
3. This saw has high precision anti-wearing guide rail, high precision cutting.
4. All working process is controlled by PLC, cutting and stacking is automatic.
5. It has a device to clear the edge waste away automatically.
6. This machine only needs 2 workers, it can save the cost of labor.
7. This saw very good dust collecting system, it will collect all dust of the machine, and dust exhaust in strong force.
|Model ||FSS48/36H |
|Cutting length ||1830-2600 mm |
|Cutting width ||900-1300 mm |
|Cutting thickness ||3-55 mm |
|Cut size ||4*8 / 3*6 Feet |
|Rotatinal speed of main saw ||5000-6500 RPM |
|Saw speed ||40-70 m/min |
|Overall dimensions ||8000*5000*1200 mm |
|Power ||34.8 KW |
|Control method ||PLC control |
|Machine weight ||About 6000 KG |
