SBJ-4*8
JINLUN
S-B

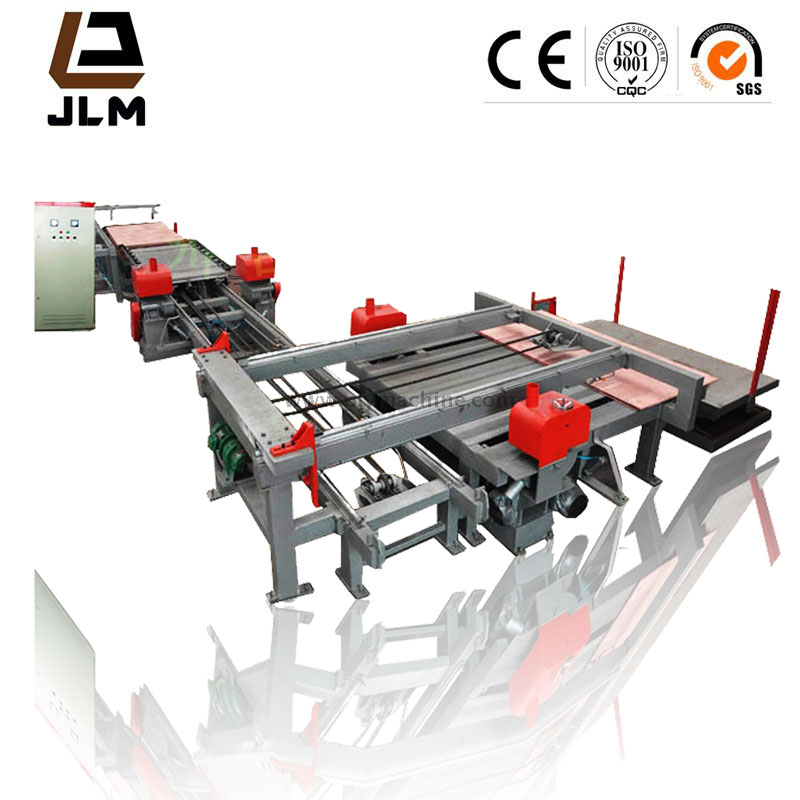

This plywood cutting saw machine is composed by infrared positioning, pre-loading device,
longitudinal trolley fasten part, longitudinal trolley chains transmission,longitudinal saw heads,
transverse trolley,transverse saw heads, transverse trolley chains transmission,automatic stacker.
all working process is controlled by PLC.So in plywood /particle board/block board production,final
size cutting will be completely automatic edge cutting and stacker.
MACHINE PARAMETER | |||
Cutting length | 1830-2600mm | Motor power | 34.8kw |
Cutting width | 900-1300mm | Product capacity | >2000pcs/day |
cutting thickness | 3-50mm | Broadside dimension | 8500*5500*1020 |
Saw blade size | φ180&φ305 | Long side dimension | 3200*3500*1300 |
Vertical saw speed | 40m--70m/min | Overall dimension | 8000×5000×1200 |
Horizontal saw speed | 40m--70m/min | Weight | 5500kg |
1.Using the advanced production technology and professional design.
2.Using the numberical control frequency conversion, touch panel, PLC and some other advanced control
system and the high quality cotrol element, make the machine workstably, safety, reliable and operate easily.
3. Infrared control systems improve the quality.
4.High precision guide operation, aligning the four edges,equaling the across corner.
5.Automatic tidy out, reducing the labor intensity.
6.Easy to operate for two workers, and save the working time.
Name: SERVO MOTOR
Name: SAW BLADE
The blade is Germany brand, the blade material is
also good and there is a small blade in front of the
big one,ensrue the board edge is neat.
Name: AUTOMATIC STACKING SYSTEM DEVICE
Full automatic stacking system to guarantee the whole trimming jobs process smooth and fast. Saving labors and time. It can stack and tidy the finished board in to package.
Name: CONTROL SYSTEM
All working process is controlled by PLC, automatic cutting and stacking. All motors and electric part can choose simense brand, increase the control precision and working smoothly.
Jinlun Group established in 1992,The goup has 4 factories and 1 trading company:Feixian Jinlun Machinery Factory, Linyi Jinlun Hotpress Co.,Ltd, Shandong Jinlun Machinery Co.,Ltd, Linyi Yinji Machiner Co.,Ltd and Linyi Jinqu Import and Export Co.,Ltd.
Company has 19 years' experience to manufacture plywood cutting saw machine, is a large scale enterprise machine, which integrates designing, developing and manufacturing.
Main products:4 feet,8 feet,10 feet and special size peeling machine.And we can offer the full set veneer peeling and plywood production equipments according to clients' needs.
Our machine own the highest domestic market share and exported to more than 20 countries(Vietnam,Thailand,Indonesia,Malaysia,Turkey,Ukraine,Russia,German,Romania,South-America,Africa,Maxcio,America and so on), you can find the machine in almost every country.
1.South-America is the main market, more than one hundred machines are working in brazil and sixty machine in paraguay.Almost every year, we send engineer to this countries to maintain machine.
2.we have cooperation with many international group company such as SHINYANG(MAS), GREENPLY(IND),Evergreen(IND),Iruna(PY)
