Compact Automatic Veneer Peeling Line for Small & Medium Plywood Factories

Compact Automatic Veneer Peeling Line for Small & Medium Plywood Factories_

Quantity:
Availability:





Inquire Add to Basket

Product Description

Compact Automatic Veneer Peeling Line for Small & Medium Plywood Factories

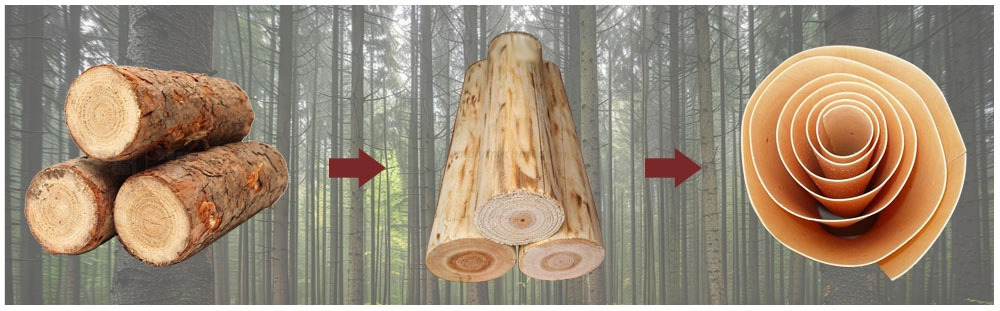

wood-veneer-produce

|

Product Introduction：

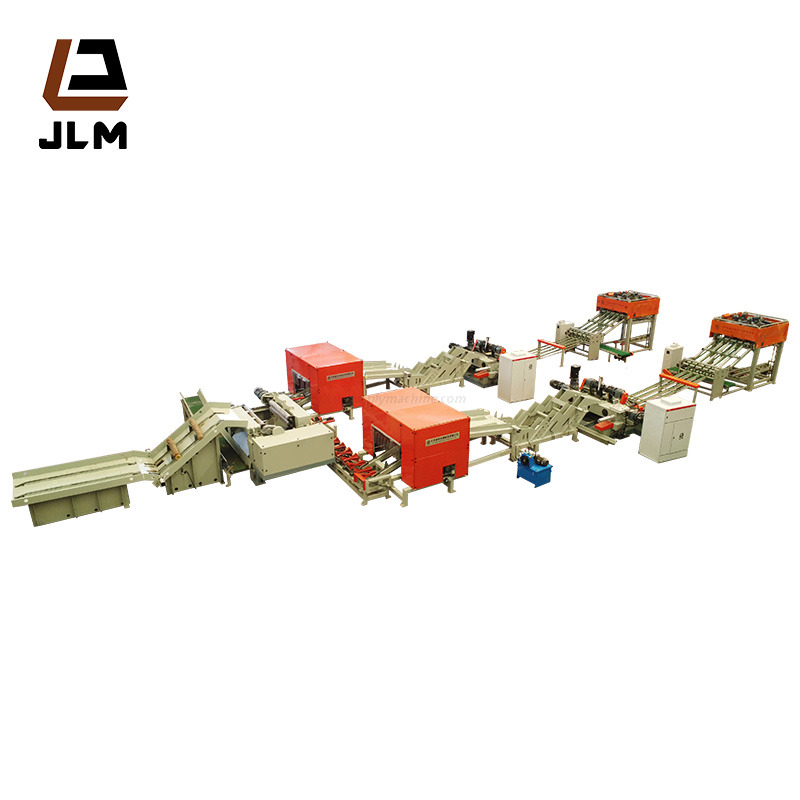

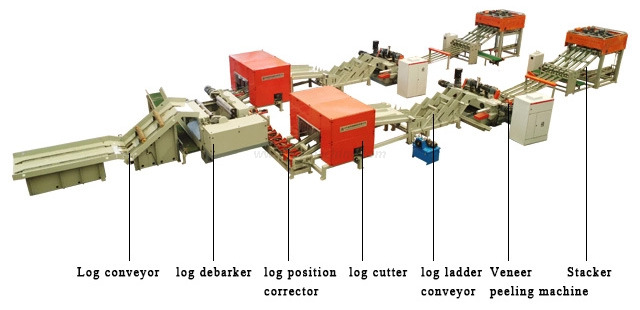

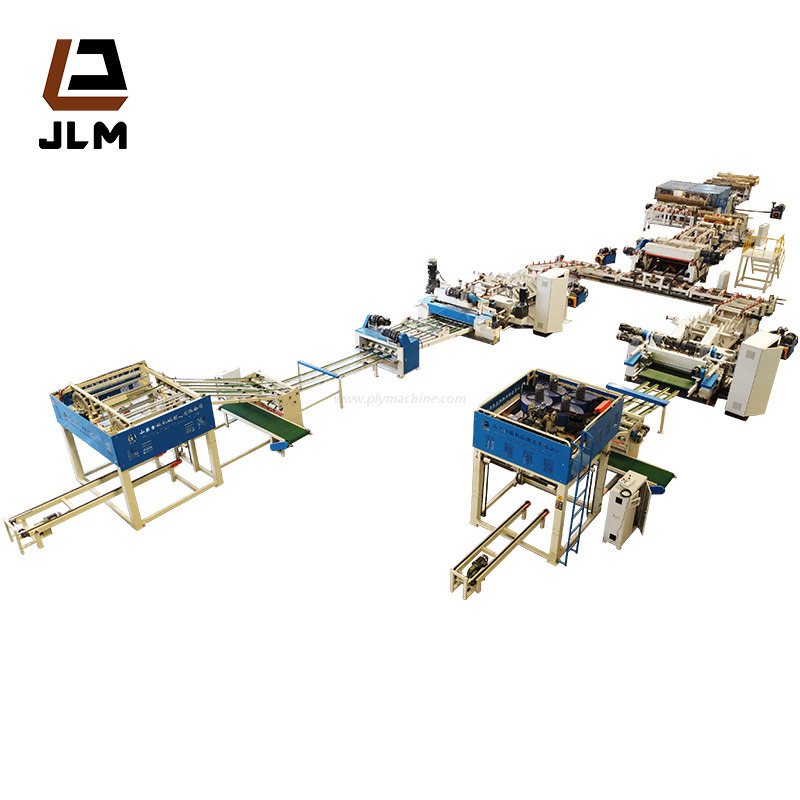

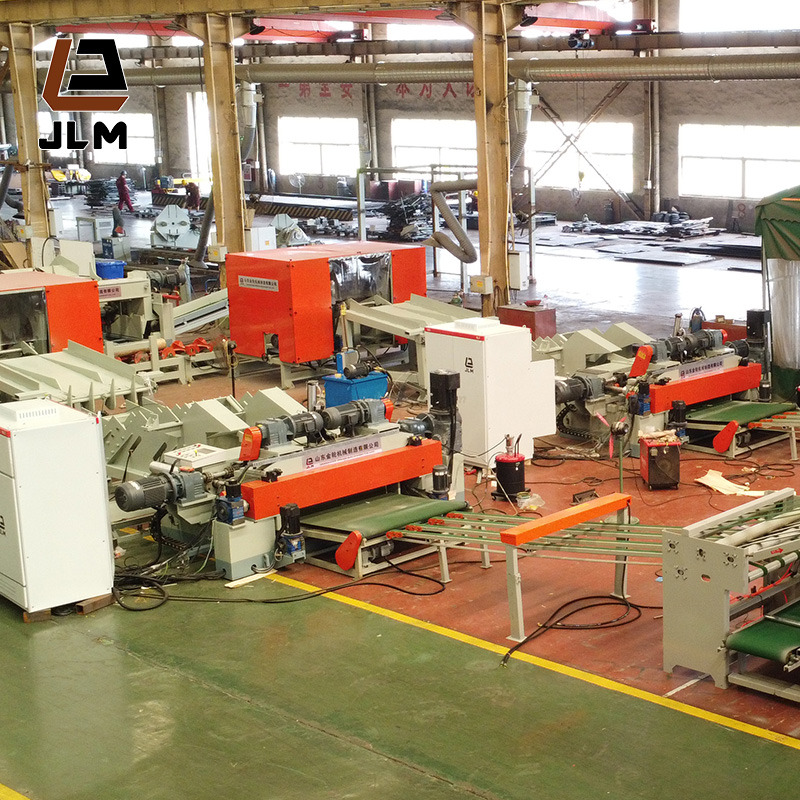

This 4ft fully-automated dual veneer peeling line integrates a log debarker with conveyor, self-positioning log distributor, dual high-speed peeling stations (2× peelers with dedicated conveyors), and automatic stacking units, enabling continuous production of 0.5-3.5mm veneer at 60-80m³ per 8-hour shift. Requiring only one operator (for debarker oversight), the system eliminates manual handling in peeling, transfer, and stacking processes, reducing labor costs by 80% compared to conventional setups. Its synchronized workflow from log feeding to aligned veneer output makes it an ideal turnkey solution for establishing efficient, compact plywood factories with rapid ROI."

|

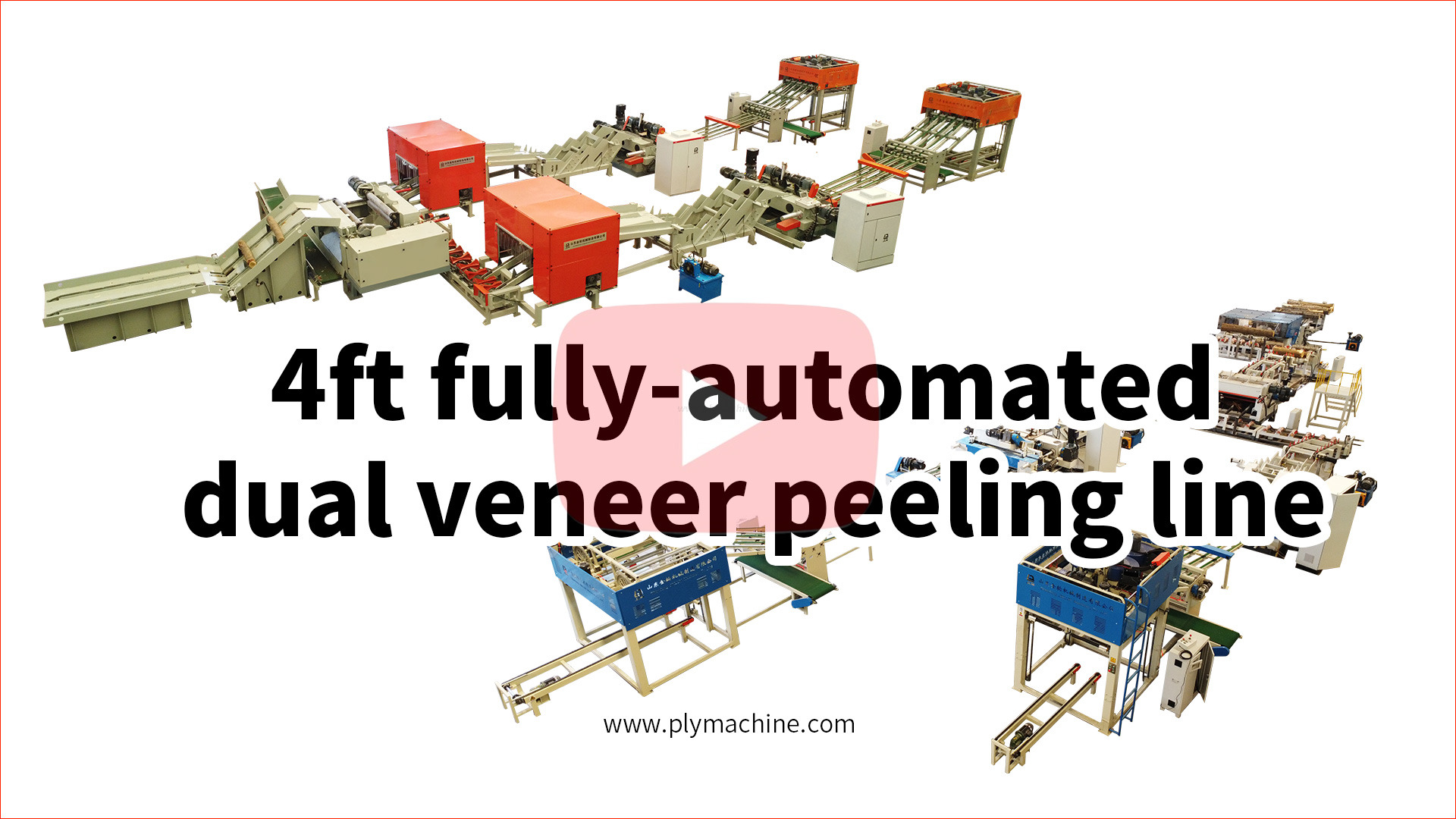

Product Video：

|

Technical Parameters：

Model	JLYTR130-70D
Maximum log length	1300mm
Maximum log diameter	Φ700mm
Blade size	160018016mm
veneer thickness	0.6-3.6mm
Veneer size	1300mm*(600mm-2600mm)
Veneer degree	3 degrees
product capacity	60-80m³/day
Total power	125kw
operator	1-2person
Weight	28600kgs
Overall size	24000mm*5600mm

|

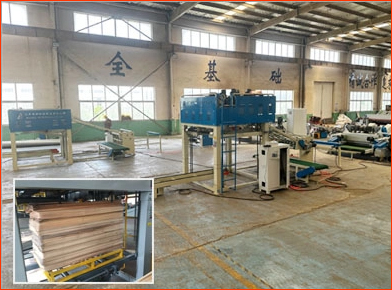

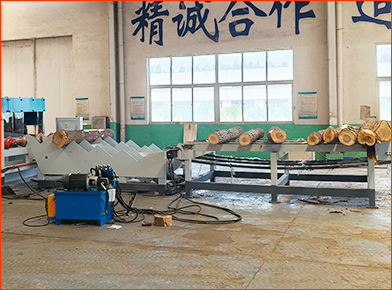

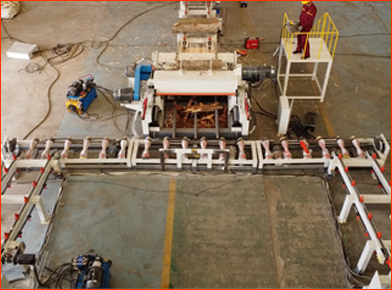

Product Advantage：

1、Stronger and More Durable Structure

This automatic veneer peeling line is engineered for high automation—requiring only a single operator. The CNC veneer peeling machine reduces labor costs and significantly lowers work intensity, making it ideal for modern plywood manufacturing plants seeking efficiency.

2、Reliable Photoelectric Detection System

Equipped with German SIKE-brand photoelectric switches, the veneer peeling equipment ensures stable operation. These highly durable components are integrated into the spindleless veneer lathe, minimizing failure risks and enhancing productivity.

3、Stable Performance & Low Maintenance

This wood veneer peeling machine delivers smooth and reliable performance. It features a robust control system that reduces downtime, making it one of the most dependable veneer lathe setups with very low maintenance needs.

4、30–40% Higher Output

Compared to traditional veneer peeling machines, this high-speed veneer production line increases daily output by 30–40%. It’s an ideal solution for LVL and plywood production lines aiming for superior efficiency and throughput.

5、Compact & Safe Layout

The entire veneer rotary cutting line is designed with a rational and compact structure, saving valuable installation space. This modern layout enhances operator safety while optimizing the workflow in veneer processing factories.

|

Machine Details：

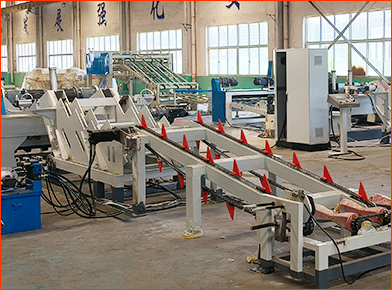

Log Conveyor for Cutting Saw

Heavy-duty conveyor transports large irregular logs to cutters using reinforced chains. Integrated step-system ensures single-log debarker feeding via alignment, preventing overlaps and boosting automation efficiency.

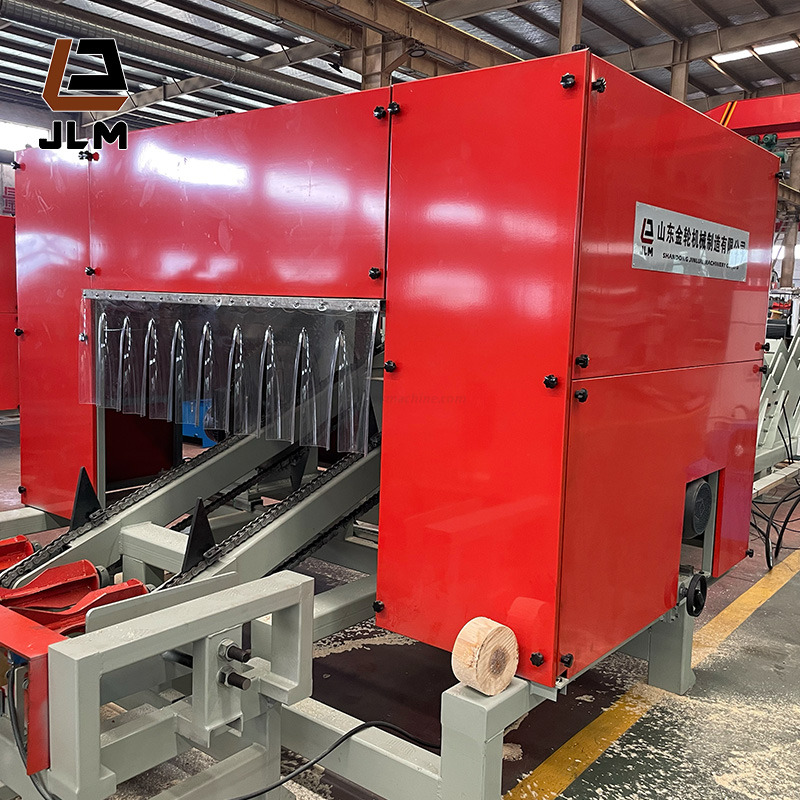

Auto-Log Sectioning Saw

Engineered for converting 8ft logs into dual 4ft segments with simultaneous edge trimming. Utilizing 1200mm-diameter circular blades, this system achieves higher productivity than conventional saws while maintaining minimal kerf width.

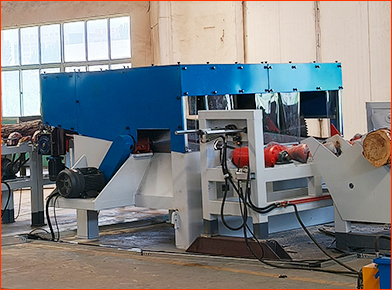

HEAVY-DUTY LOG DEBARKER

This heavy-duty log debarker features a support roller that helps process irregularly shaped logs and ensures smooth log discharge. The design allows the peeling process to run smoothly without manual intervention. Its durable structure handles various log types efficiently, even under demanding conditions.

Log Sorting Conveyor

This conveyor system is designed to automatically route logs to various processing machines based on their diameter. Equipped with high-precision sensors, it detects log dimensions and sends the data to a PLC for intelligent distribution. This automation not only minimizes manual labor but also significantly enhances operational efficiency.

Log Conveyor for Peeling Machine

This system automatically feeds logs into the peeling machine. The position corrector centers each log, while the declining conveyor separates and delivers them one by one. It enables fully automated operation without manual input.

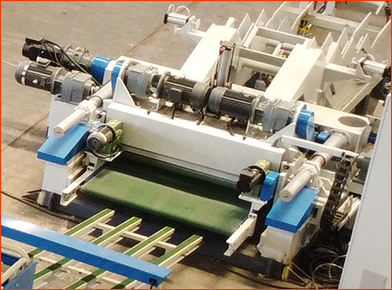

Automatic Veneer Peeling Machine

This fully automatic model operates at speeds of 40–100 m/min, eliminating the need for an operator and significantly boosting veneer production efficiency. It handles logs up to 700mm in diameter (regular size: 500mm), with adjustable veneer thickness from 0.6 to 3.6mm and a precision tolerance of ±0.075mm. As the core equipment in the veneer production line, it ensures high output with consistent quality.

Automatic Veneer Stacker

This high-speed veneer stacker is designed to keep up with peeling machines running up to 100 m/min. With a working speed of 40–120 m/min, it handles veneer thicknesses from 0.8 to 3.6 mm. Equipped with vacuum suction fans, it ensures smooth veneer transfer and automatic stacking by grade. Hole size for sorting can be customized, making it an essential part of modern automated veneer production lines.

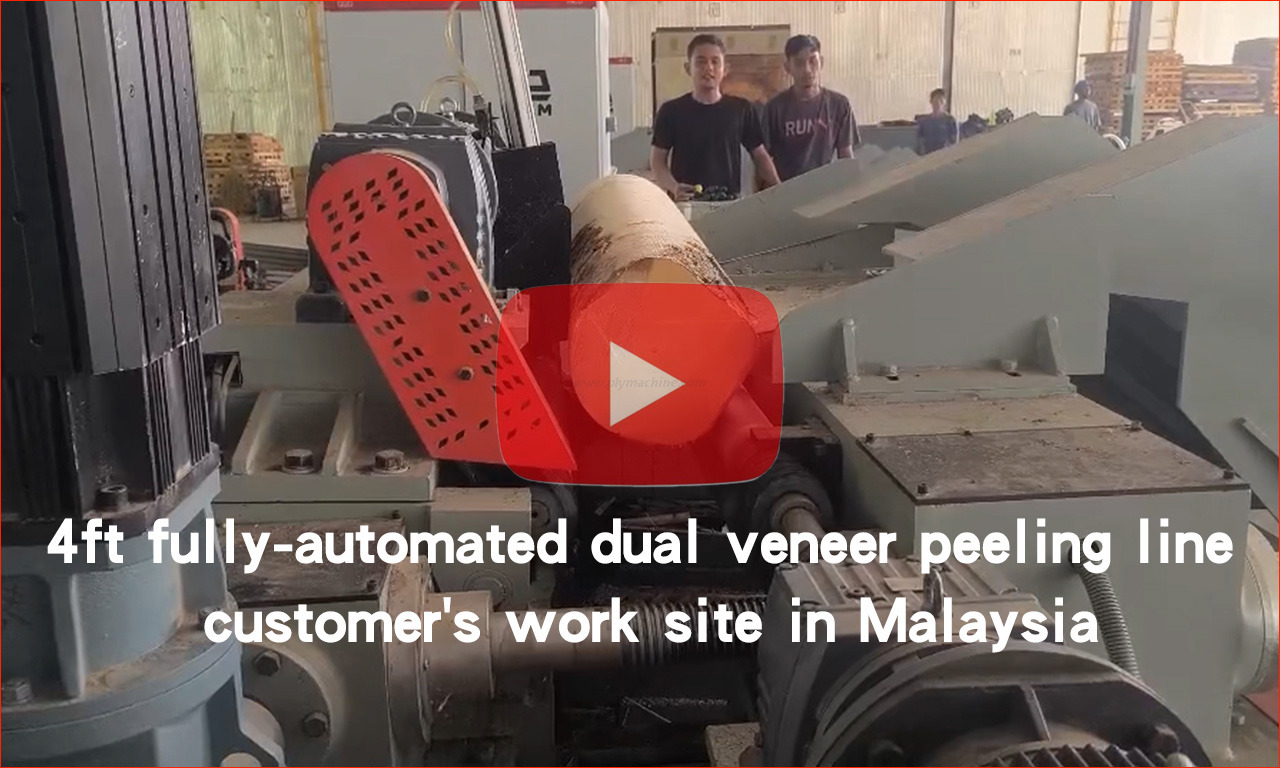

| Client's Production Site：

veneer-peeling-line-customers-work-site-in-Malaysia
