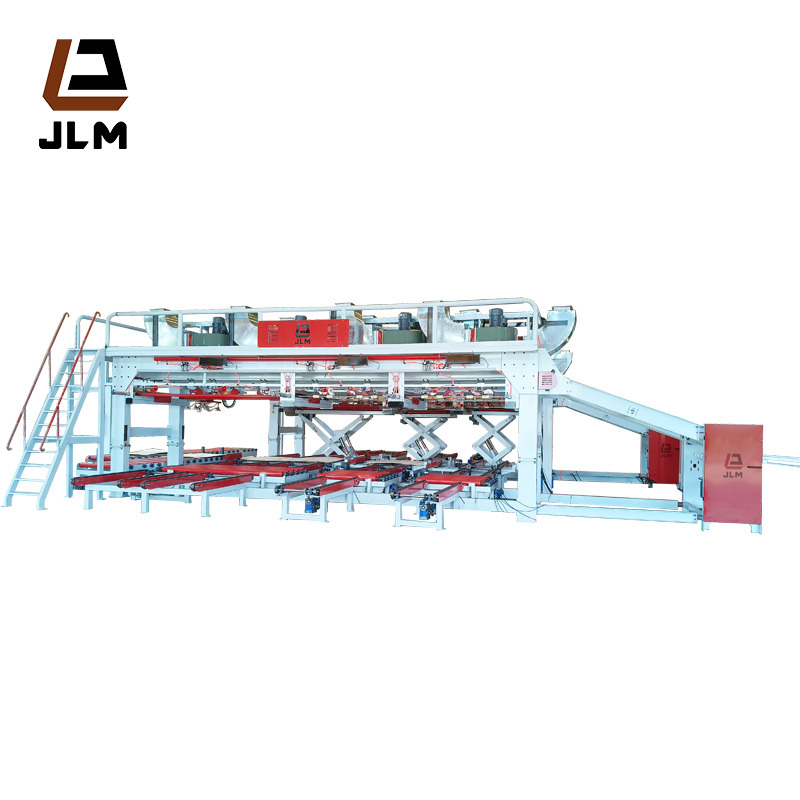

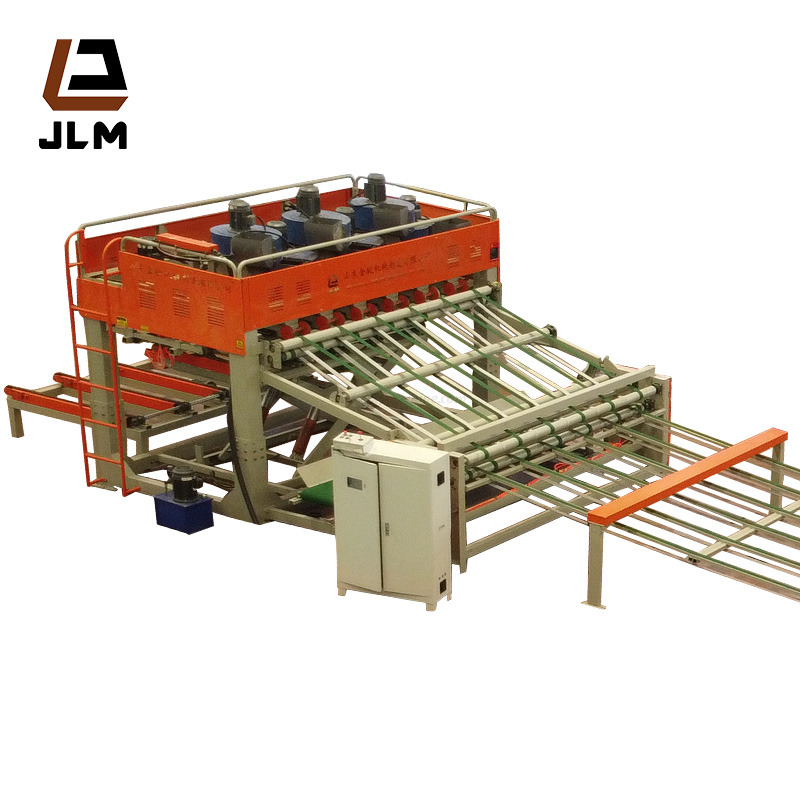

The JINLUN automatic veneer stacker is designed to efficiently stack veneers after peeling, preparing them for the next stage of production. It supports graded stacking by automatically identifying veneer hole sizes and layering accordingly, which eliminates the need for manual sorting and significantly reduces labor costs.
| Quantity: | |
|---|---|

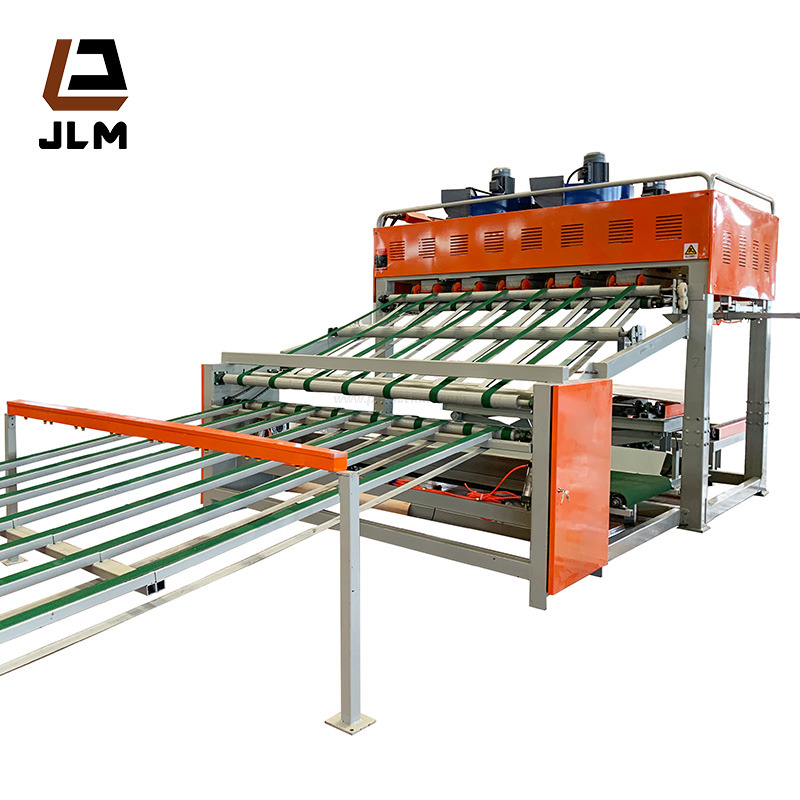

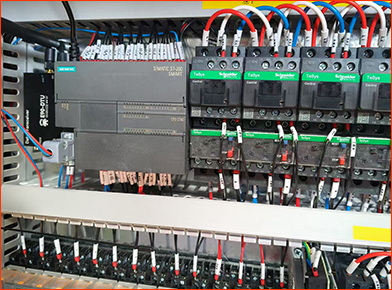

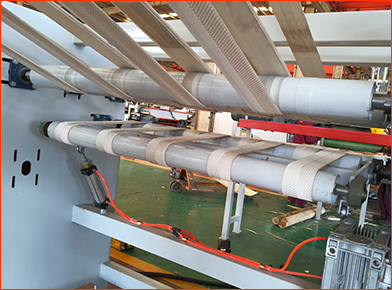

This vacuum-powered stacker automates the sorting and stacking of veneers post-peeling. With a 600 mm/min stacking speed, it handles 0.3–3 mm thick veneers and stacks up to 200 sheets per cycle . The system integrates Schneider electric components and a PLC-controlled suction system, ensuring ±1 mm alignment accuracy and 99.9% sheet retention .
By replacing 2–3 manual workers, the stacker reduces labor costs by 30,000 annually in a 2-shift operation. Its compact footprint (3.5 x 2.2 meters) fits seamlessly into existing production lines .
The vision-based defect detection system identifies cracks and knots, diverting defective veneers to a waste bin. This improves first-grade yield by 15–20% .
The stacker’s anti-static coating prevents sheet sticking, while dual emergency brakes ensure safe operation. A CE-certified design meets EU safety standards for industrial machinery .
• Plywood Factories: Automates post-peeling processes for consistent veneer quality.
• Laminate Manufacturers: Stacks decorative veneers for high-pressure laminates (HPL) used in countertops.
• Construction Material Suppliers: Prepares veneers for glue-laminated timber (glulam) production .
Model | 4*4FT Core Veneer Vacuum Stacker | 4*8FT Core Veneer Vacuum Stacker |
Veneer width | 400-1300mm | 4*3ft, 4*4ft, 4*8ft (size adjustable) |
Veneer thickness | 1.2-3.6mm | 1-4mm |
Stacking speed | 30-100m/min (speed adjustable) | 30-100m/min (speed adjustable) |
Stacking height | 1000mm | 1000mm |
Vacuum absorb motor | 1.5KW*4PCS | 1.5KW*8PCS |
Lift motor power | 2.2 kw | 2.2 kw |
Total Power | 23.2KW | 29.2KW |
Total weight | 2400kgs | 4000kgs |
Overall dimension | 8000*2040*2750mm | 10600*2040*2750mm |
