8 Feet Spindle Woodworking Machine

Quantity:
8 feet spindle veneer peeling machine
production show
Card axis peeling machine is the main equipment for the production of plywood, which is used for wood processing certain length and diameter of the single plate continuous belt, after being cut into single plate of certain specifications. The performance and operation of card axis peeling machine, the yield and quality of plywood has a very close relationship. Card axis peeling machine with card peeling machine, peeling machine, compact structure, beautiful appearance, flexible adjustment, stable performance.
Max log length 2600mm
Max log diameter 1300mm
Spindle diameter 110mm
Veneer thickness 0.1-3.0mm
Peeler blade size 2700x180x16mm
Peeling speed 48m/min
Power 25.5kw
Total weight 4800kg
Overall size 4300x2200x2000mm
procuction picture

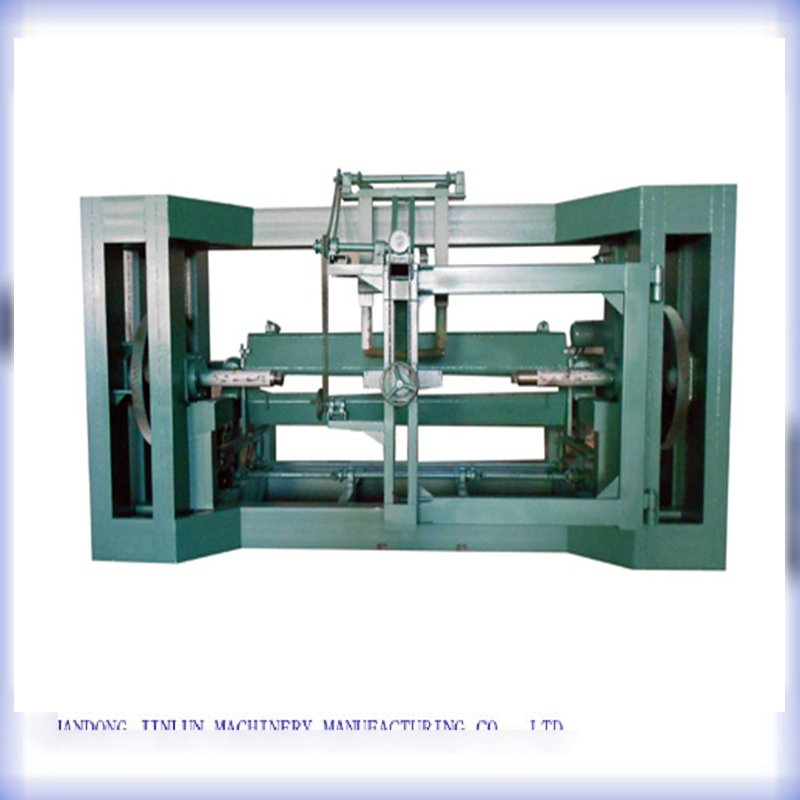

8 Feet Spindle Woodworking Machine
8 Feet Spindle Woodworking Machine
8 Feet Spindle Woodworking Machine
Packing and deliver
8 Feet Spindle Woodworking Machine
8 Feet Spindle Woodworking Machine
