High Frequency Hydraulic Hot Press Price

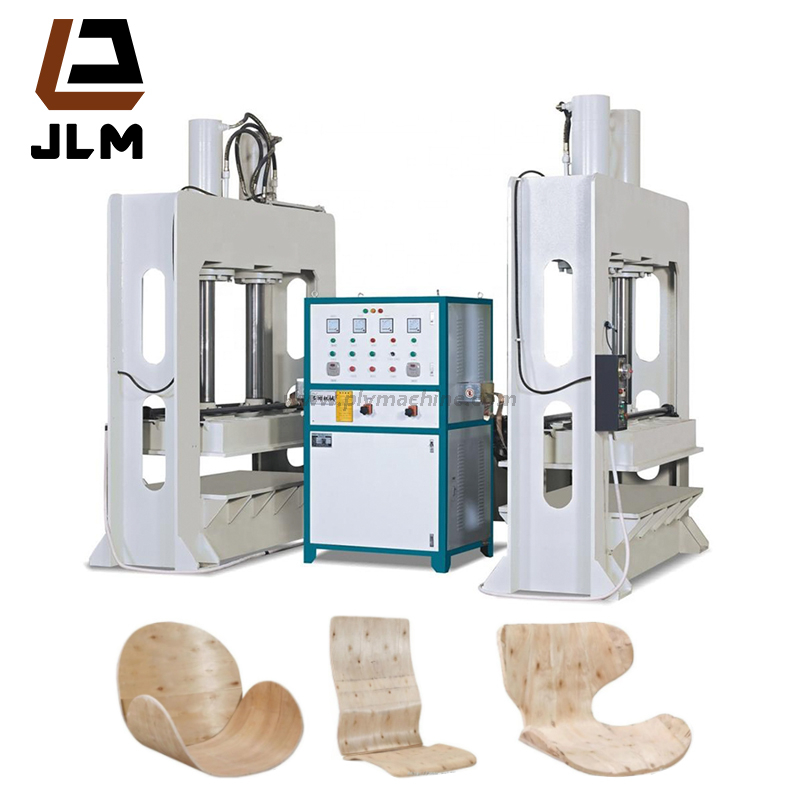

High frequency curved plywood press applies high frequency generator to hydraulic press, by mold and electro, it transfers the high frequency power to the work piece to achieve the function of fast gluing and forming. It's suitable for BENT PLYWOOD CHAIR, BENT OR ARC PLYWOOD FOR THE FURNITURE OR BED or other bent plywood products like CLOTH HANGER OR SURFACE OF MUSICAL INSTRUMENT.

Quantity:

High frequency curved plywood press applies high frequency generator to hydraulic press, by mold and electro, it transfers the high frequency power to the work piece to achieve the function of fast gluing and forming. It's suitable for BENT PLYWOOD CHAIR, BENT OR ARC PLYWOOD FOR THE FURNITURE OR BED or other bent plywood products like CLOTH HANGER OR SURFACE OF MUSICAL INSTRUMENT.

High frequency curved plywood press applies high frequency generator to hydraulic press, by mold and electro, it transfers the high frequency power to the work piece to achieve the function of fast gluing and forming. It's suitable for BENT PLYWOOD CHAIR, BENT OR ARC PLYWOOD FOR THE FURNITURE OR BED or other bent plywood products like CLOTH HANGER OR SURFACE OF MUSICAL INSTRUMENT.

1.Charactor of High Frequency Curved Plywood Press

A.Fast and uniformly heating

B.Bending shape is stable, not easy to change de-lamination.

C.High frequency power is a selectively heatig power, it concentrates only on water or glue. wood cannot consume high frequency power, so it is effective and power saving.

D.Wooden or MDF mold used, much economic than metal mold if shape is frequenctly changed.

2.Basic Parameter

1 way high fr equency curved plywood bending form press machine
Model
GYJ-60-DT
GYJ-80-DT
GYJ-120-DT
GYJ-150-DT
HF Frequency
6.78MHz
HF Power
20kw
20kw
30kw
50kw
Worktable
1200*600mm
1600*800mm
2000*1000mm
2500*1250mm
Pressure
60T
80T
120T
150T
Outputs
2 outputs, shift to work
Protections
Filament 2 grades warming up, over current, air pressure, over heating, door switch protections
3 ways high frequency curved plywood bending form press machine
Model
GYJ-116-DT
GYJ-140-DT
HF Frequency
6.78MHz
HF Power
20kw
30kw
Worktable
1600*800mm
1600*800mm
Vertical Pressure
100T
80T
Side Pressure
2*8T
2*30T
Outputs
2 outputs, shift to work
Protections
Filament 2 grades warming up, over current, air pressure, over heating, door switch protections
