500 T Hot Press Machine for Plywood/Plywood Making Machine Hot Press Machine

Quantity:
500 T 10 layers hot press machine for plywood and wood based board
Features:

The machine is fast double veneer transverse semi-automatic presses, top-mounted cylinder, frame structure, and frequency control car into the plate and the plate cylinder bracket consisting of rapid short-period double veneer production line. Simple operation, easy maintenance, high yield (> 1000 / shift), is ideal for the production of plywood and reinforced flooring. Machine design is reasonable, safe and reliable, electrical control leading PLC programmable controller, the main components and the hydraulic components are from well-known manufacturers of quality products. This machine is widely used to suppress particleboard, plywood, fiberboard various decorative surface veneer.

Description Transverse 4*8ft plywood hot press machine
Nominal pressure 500 ton
Direction of boards in Transverse
Layers/ Quantity of hot platens 10 / 11
Openning 70mm
Size of hot platens 2700×1370×42mm
Diameter of cylinders Φ360 X 2 pcs
Stroke of cylinders 800mm
Allowed pressure ≤25Mpa
Closing time of No-load 15s
Flow of low pressure pump 25ml/r
Allowed pressure ≤3Mpa
Power of low pressure pump 15kw*2
Flow of high pressure pump 10ml/r
Power of high pressure pump 5.5kw
Size of finished boards 1220×2440mm
Dimension of whole machines 3550*1370*3950mm
Controlling methods Automatic pump station
Methods of frames Detachable frames
Weight of whole machine 30 ton
Warranty 12 months

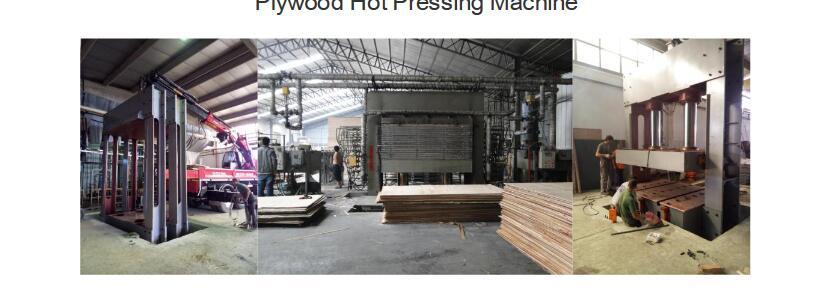

500 T Hot Press Machine for Plywood/Plywood Making Machine Hot Press Machine
500 T Hot Press Machine for Plywood/Plywood Making Machine Hot Press Machine

Our after-sale service:
500 T Hot Press Machine for Plywood/Plywood Making Machine Hot Press Machine
plywood-making-machine
