Hot Sale 4 Plywood Manufacturing Process

Availability:
Quantity:

                               Hot Sale 4 feet plywood  manufacturing  process
Production show

The rotary tangent is one of the main production lines of plywood. It is composed of conveying equipment, round machines, rotary cutting machines and palletizing machines. Among them, the rotary cutting machine(veneer peeling machine)is the most important part.

Spindle-less veneer peeling machine is one of the equipment for the production of plywood, which belongs to the mechanical spindleless rotary cutting transmission machine, suitable for lathe cutting remaining wood core to continue into veneer, also can be applied to small diameter wood (diameter 300mm) into veneer.These advantages like those:
1,Processing of the board thickness uniform, surface smooth;
2,reasonable structure, easy operation and maintenance;
3,equipment performance is stable, less wearing parts, long life;
4,saving timber resources.
5,Artificial technical requirements are not high,in the normal peeling the machine,the error in ± 0.1mm

四尺新款详情页1的副本四尺新款详情页2的副本

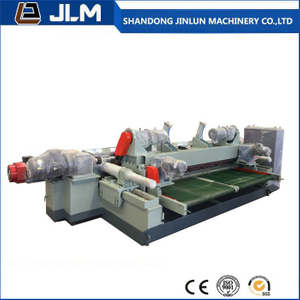

4 feet spindle less veneer peeling machine
Max log length 1300mm
Max log diameter 700mm
Veneer Cutting thickness 1-6mm
Peeling speed 46-65m/min
Power  32kw
Total weight About 8000kg
Overall size 4100x2200x1650mm
Automatic thickness change Yes
Hydraulic knife changing Yes
Note: 1,Special design according to customer's requirement is available.
      2,Please contact manufacturer for machine working video.


Other information

A. Servo motor, high precision, control cutter adjustment (adjust knife seam refers to the distance between the single roller and blade), slit control single board thickness.
B. The rolling cutter seat is arranged above the rubber roller and is positioned on the same frame as a whole. Place the cutter seat first, then place the hob holder.
C. A part of the hob holder is to place the blade
D. Combination deceleration motor (first) + motor (after)
E. Rubber covered roller is under the blade."The board" role. The hob holder is used to fix the blade.
F. Between the cutter holder and hold(ing)-down clip fix blade knife, the veneer seat out from a single gap between the roller and the knife body. Cut the blade on the hob holder. When cutting, roll the cutter holder and the rubber roller to rotate, and the cutter body does not move.

If have any question about the machine, Welcome contact the salesman anytime
Our services

1.We will send our engineer under your indications to  your  factory  for  installing,  debugging  and  maintaining,  you only need to afford the cost of the flights, and  the engineer's accommodation .
2.If you are experienced in installing jobs,  we  will  provide ongoing  technical support for you.
Guarantee time for the main parts of the machine will be 12 months, in this period, if the machines itself  have the problem, we will freely maintain it, but not including the problem caused by the wrong or rough operation.
3.The buyer sends people to seller's factory for study:
one month and one person. The buyer should pay for the round air fare, and the seller arrange for food and accommodation, and the service including: the machine's fixing, debugging, operating, maintaining.
4.After the warranty, we can also supply the engineer service and the technical service, but  you need to  pay  the salary for the engineer! and afford the cost of the replaced aparts yourself. More service, you can get by send us an e-mail or a fax.

Q&A
1. Q: Are you a factory or a trading company?
A: We are a factory who manufacture the machine by ourself. We have 2 factoies and 1 trading company.
2. Q: What is the delivery time?
A: Normally will be 30 days after getting deposit or original LC.
3. Q: What is the maintenance period? What kinds of after-sale service do you support?
A: 1 year after delivery. We supply telephone after-sale service, video service and e-mail service. If can not deal with the problem, our tech-staff will go abroad to service.
4. Q:What is the payment terms?
A:a.T/T(30% deposit, 70% before delivery in FOB or 70% paied against copy of B/L in CFR)
b. 100% irrevocable L/C at sight.
5. Q: Can we visit your factory?
A: Welcome to visit us! Everyday we have customers from different countries. By now, we have exported to more than 20 countries customer.
