CNC venner peeling machine is important equipment in plywood production line and venner production line. it main to peeling off small diameter (max diameter to 700mm),wood and peeling plywood core plate, automatic peeling, cutting board, fast, provincial labor 2-3 people, Veneer size can be set to change, fully automated production. For poplar, pine, birch and so on.

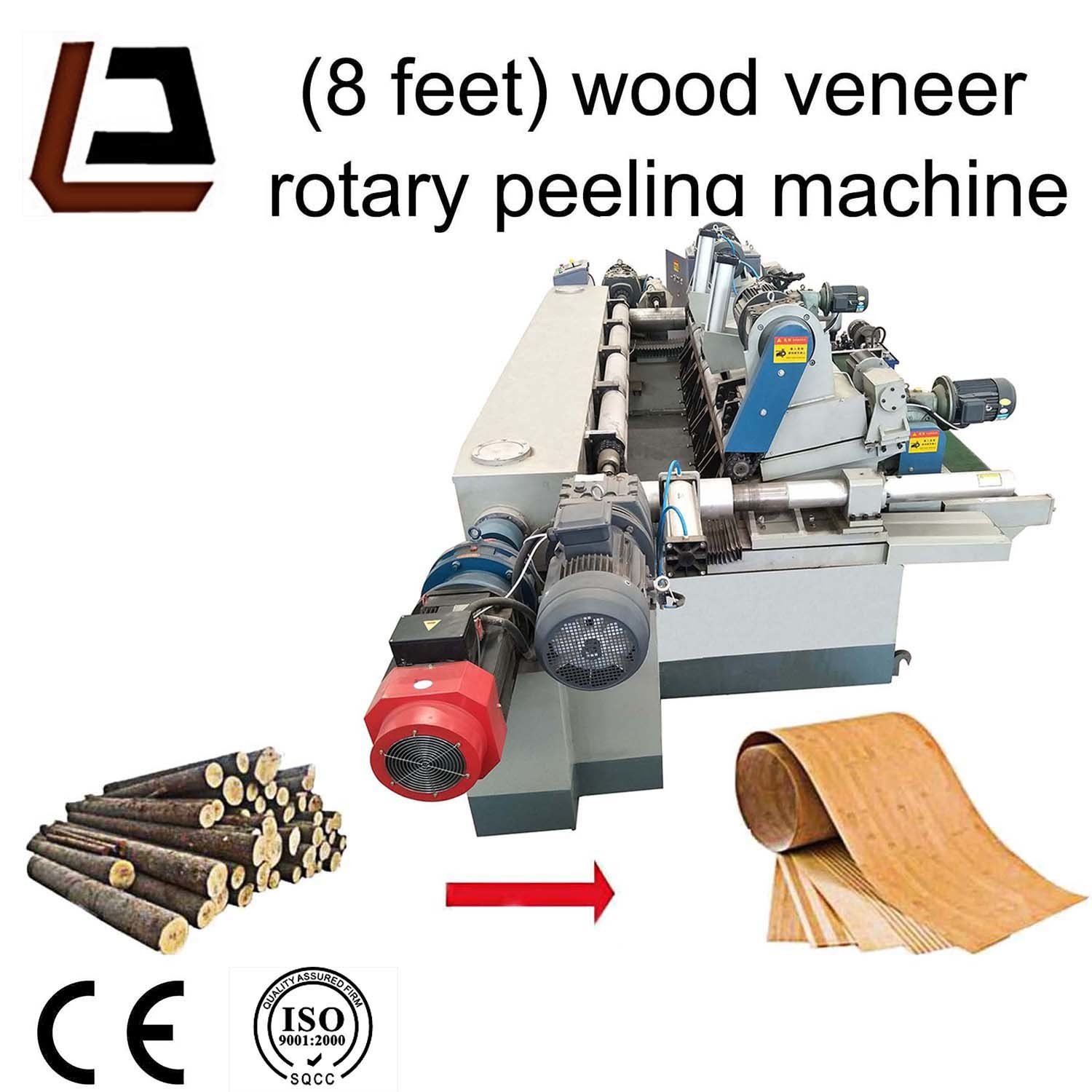

| JINLUN CNC Spindleless Veneer Peeling Machine |
| Type | 4feet (1300mm) | 8feet (2600mm) |
| Model | WWXQ130SY-40F | WWXQ260SY-50F |
| Cutting Size | 500*1300mm | 500*2600mm |
| (Diameter*Length) |
| Min Residual | 28mm | 32mm |
| Diameter |
| Max Stroke of | 500mm | 450mm |
| Tool Slide |
| Cutting Thickness | 0.5~3.6mm | 0.5~3.6mm |
| Cutting Speed | 50m/min | 48-65m/min |
| Power | 21.5KW | 60 KW |
| Peeler blade | 1400mm*180mm*16mm | 2700mm*180mm*16mm |
| (L*W*H) |
| Clipper Size | 1400mm*90mm*12.7mm | 2700mm*90mm*12.7mm |
| (L*W*H) |
| Dimensions | 4100mm*2150mm*1600mm | 6100mm*2200mm*1650mm |
| (L*W*H) |
| Total Weight | About 6000KG | About 11000KG |
Advantage of peeler :
1.servo motor drive, precision screw feed, ensure the thickness of ± 0.05 mm ; width ± 0.05 mm uniform section.
2. Hydraulic on the knife, get rid of mechanical trouble, easy maintenance.
3.Automatically adjust knife, even in the peeling,still adjust the thickness of two different veneer,
4. Friendly user interface can help operators find any problems in time.
5. Two-in-one structure, peeling and cutting together, reducing costs
6. Power-saving, simple operation, easy maintenance
