Product Introduction：

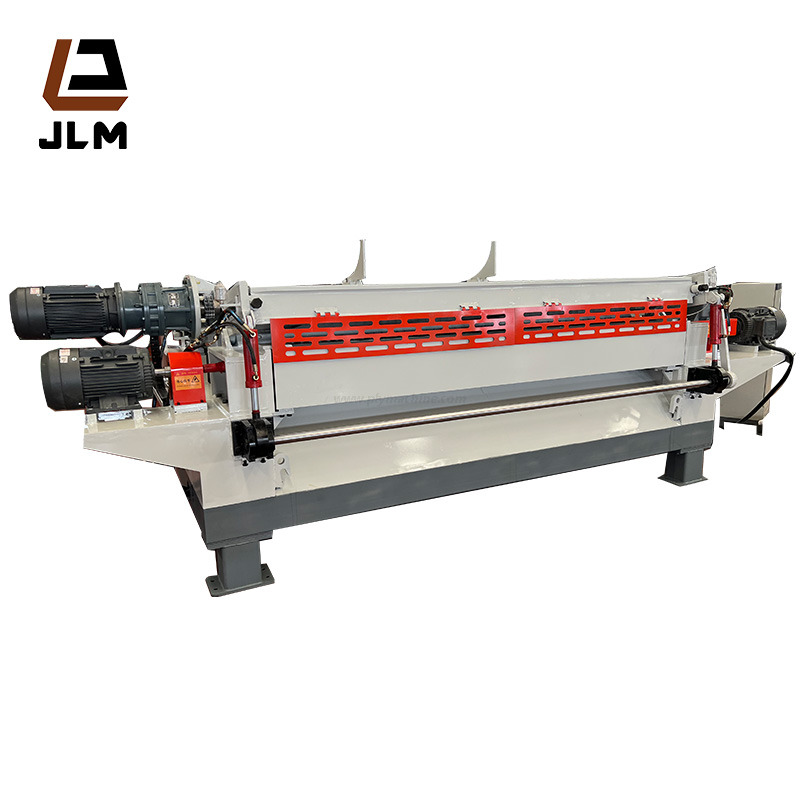

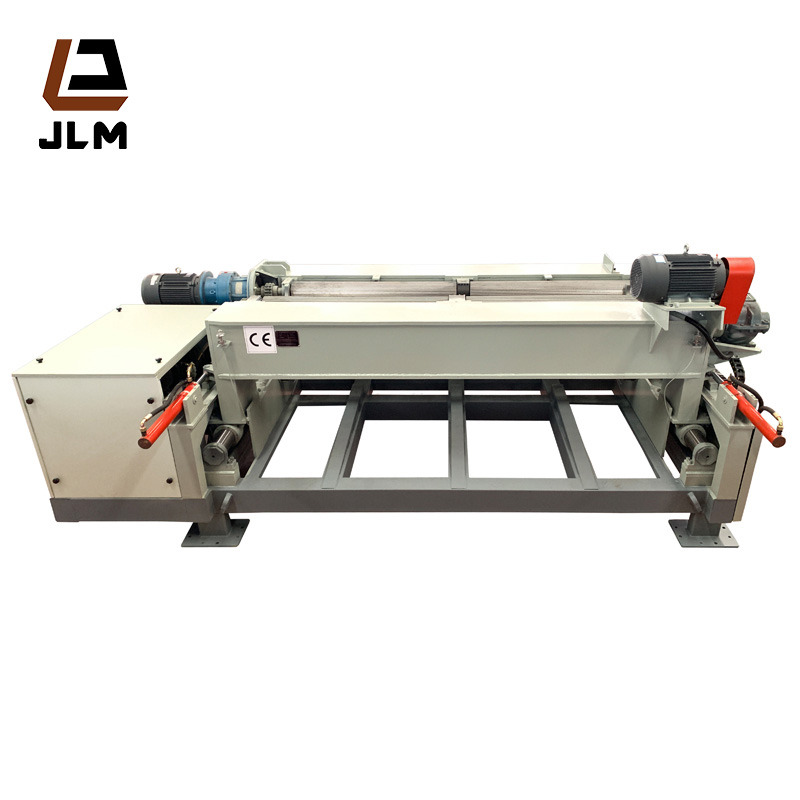

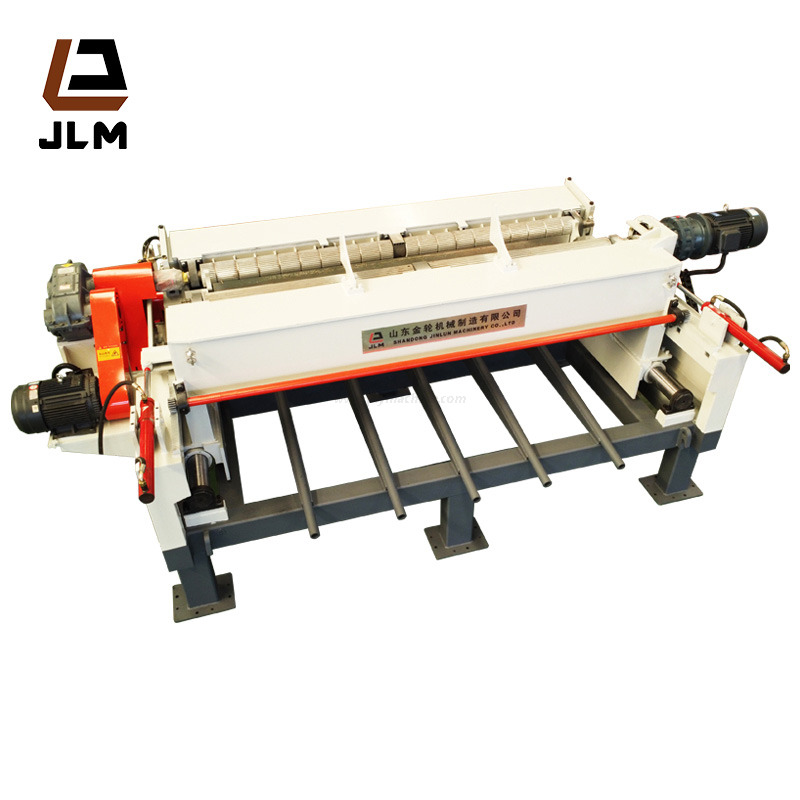

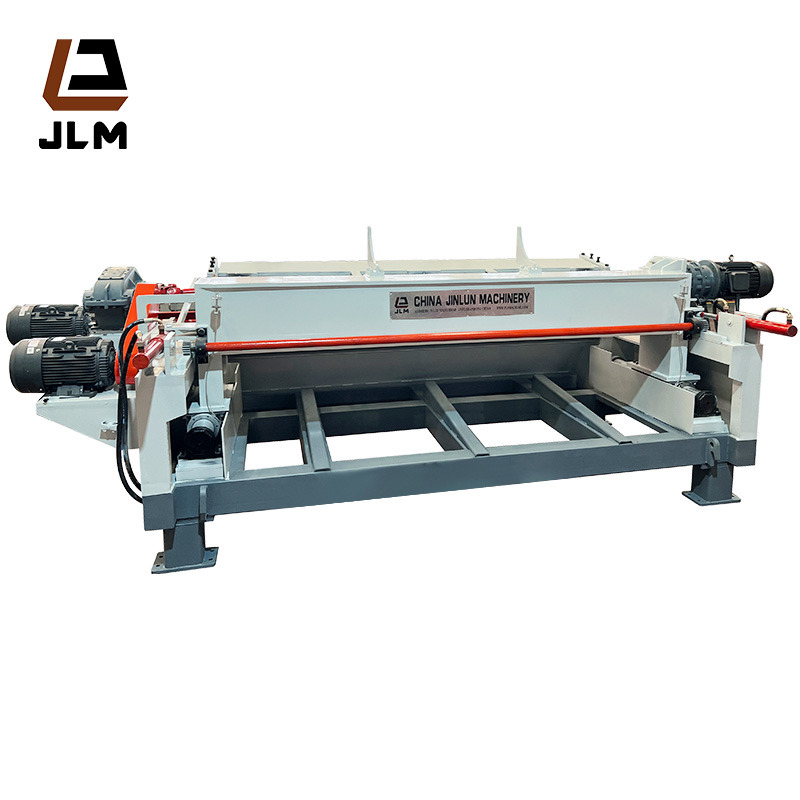

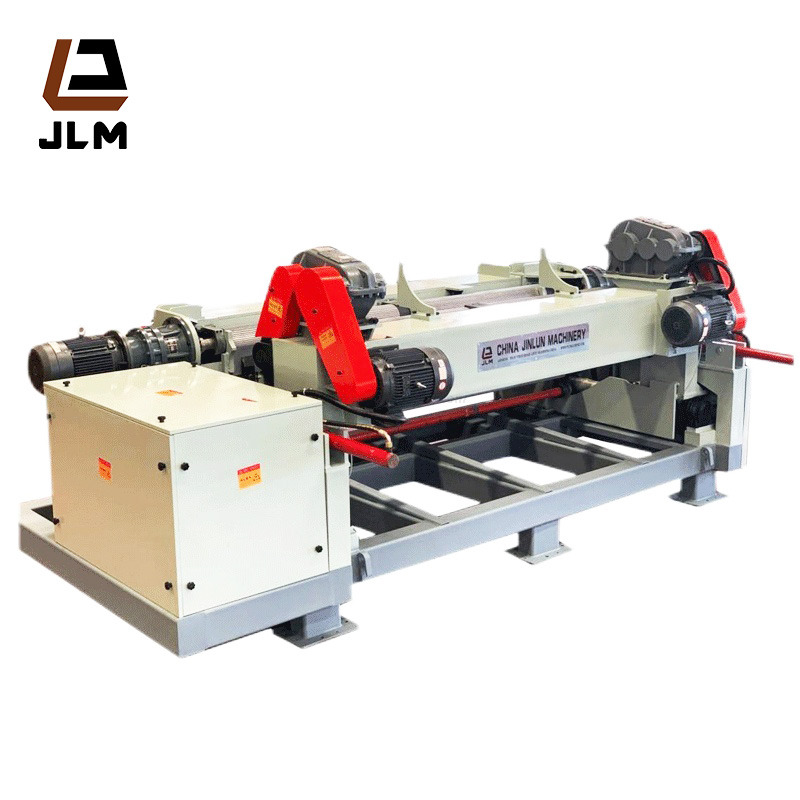

4 Feet Log Debarker
8 Feet Log Debarker
Customize any size
Debarker is used for rounding logs before peeling veneer. It is suitable for processing many types of wood such as eucalyptus, pine and cottonwood. Operating on the principle of peeling, it removes the log's bark and straightens the logs.
The hydraulically driven feed mechanism enables quick and efficient bark removal, rounding the logs in the process. One debarker unit can supply two peeling machines.
This system eliminates the need for manual peeling and rounding processes, saving 5-6 workers.
|
Product Video：
|
Product Advantage：

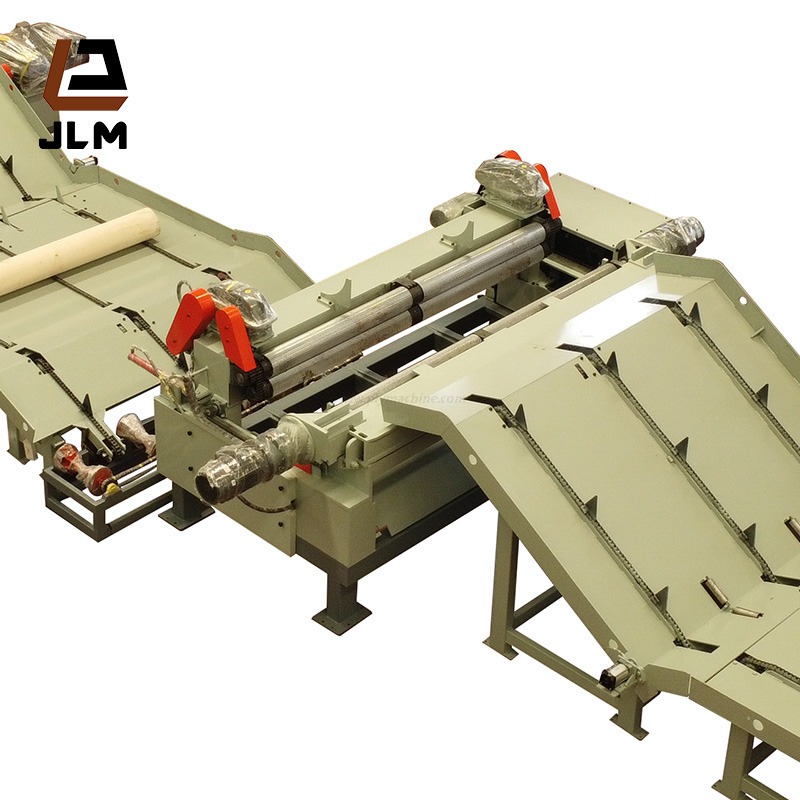

Support Roller & Large Diameter
The adoptable support roller device is particularly useful in full-automatic veneer peeling lines. When processing larger or non-straight logs, this support mechanism assists in rotating the log more easily, thereby improving rounding efficiency and ensuring smooth log descent.
Stronger Joint, Smoother Debarker
Upgrade to a universal joint (replacing the original China connector) for stronger, more stable power transmission, longer service life, and reduced breakage risk—ensuring smooth, quiet debarker operation.
Stronger Joint, Smoother Debarker
The hydraulic valve and pump utilize globally renowned Taiwanese brands, ensuring reliable performance with minimal operational issues. This unit controls the feeding system, delivering sufficient power to process even large and hard logs efficiently. Equipped with an air cooling fan to regulate oil temperature, the entire hydraulic system operates smoothly and stably.
Knife Gap Adjuster
The knife gap adjuster dynamically adapts to log diameter, preventing jams and optimizing debarking speed. This highly efficient mechanism is essential for log debarking machines.
Veneer Waste Shredder
After debarking, waste veneer and bark require shredding for boiler fuel. This shredder uses dual rotating blades to prevent clogging, unlike single-blade systems that need frequent stoppages. The design ensures smooth material flow, maximizing productivity.
Product Name | 4 ft. normal model Log Debarker | 4 ft. Heavy model Log Debarker | 8 ft. normal model Log Debarker | 8 ft. Heavy model Log Debarker |
Model | JLZY130-55AB | JLZY130-70AG | JLZY260-55AB | JLZY260-70AG |
Max. Log diameter | 550mm | 700mm | 550mm | 700mm |
Min. Log diameter | 100mm | 120mm | 100mm | 120mm |
Blade size | 1600*180*16mm | 1600*180*16mm | 2800*180*16mm | 1600*180*16mm |
Single roller diameter | 150mm | 165mm | 150mm | 178mm |
Double roller diameter | 150mm | 178mm | 150mm | 200mm |
Support roller | inexist | exist | inexist | exist |
Total power | 22.5kw | 27.5kw | 30kw | 57.5kw |
Single roller power/Motor | 7.5kw | 11kw | 11kw | 2*11kw |
Double roller power/Motor | 11kw | 11kw | 15kw | 2*15kw |
Hydraulic unit power/Motor | 4kw | 5.5kw | 4kw | 5.5kw |
Overall size | 4600*2000*1300mm | 4600*2250*1600mm | 5500*2000*1300mm | 5600*2250*1300mm |
Weight | 4200kgs | 5200kgs | 6500kgs | 7300kgs |
|
