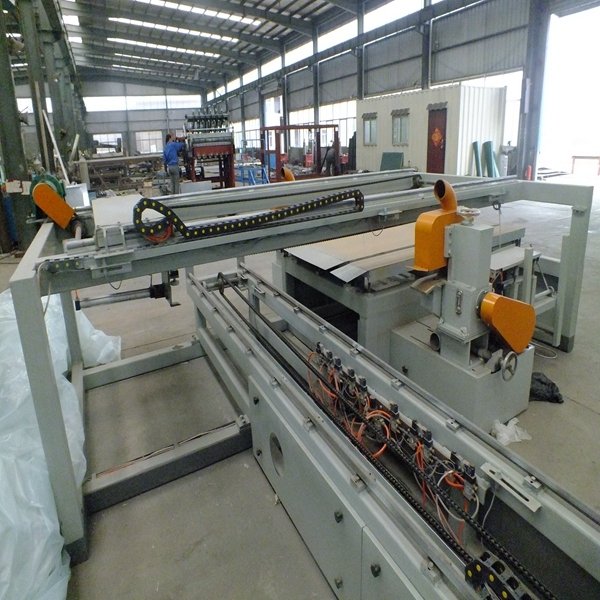

Vertical and Horizontal Board Trimming Saw for The Plywood

Availability:
Quantity:
Double edge Vertical and horizontal plywood board trimming saw

Product describtion:
Automatic Plywood Double Sizer/Four-edge trimming saw/Precision Plywood Edge Cutting Machine
 Advantages of edge trimming saw :
1. The main structure is strong with enoughrigidity and high stability.
2. It has pre-loader device, the prduction capacity and efficiency is high: one shift working can produce 4000-5000(18mm).
3. This saw has high precision anti-wearing guide rail, high precision cutting.
4. All working process is  controlled by PLC, cutting and stacking is automatic.
5. It has a device to clear the edge waste away automatically.
6. This machine only needs 2 workers, it can save the cost of labor.
7. This saw very good dust collecting system, it will collect all dust of the machine, and dust exhaust in strong force.
Model FSS48/36H
Cutting length 1830-2600 mm
Cutting width 900-1300 mm
Cutting thickness 3-55 mm
Cut size 4*8 / 3*6 Feet
Rotatinal speed of main saw 5000-6500 RPM
Saw speed 40-70 m/min
Overall dimensions 8000*5000*1200 mm
Power 34.8 KW
Control method PLC control
Machine weight About 6000 KG
Vertical and Horizontal Board Trimming Saw for The Plywood
Vertical and Horizontal Board Trimming Saw for The Plywood
Vertical and Horizontal Board Trimming Saw for The Plywood
Vertical and Horizontal Board Trimming Saw for The Plywood
Our after-sale service:
Vertical and Horizontal Board Trimming Saw for The Plywood
