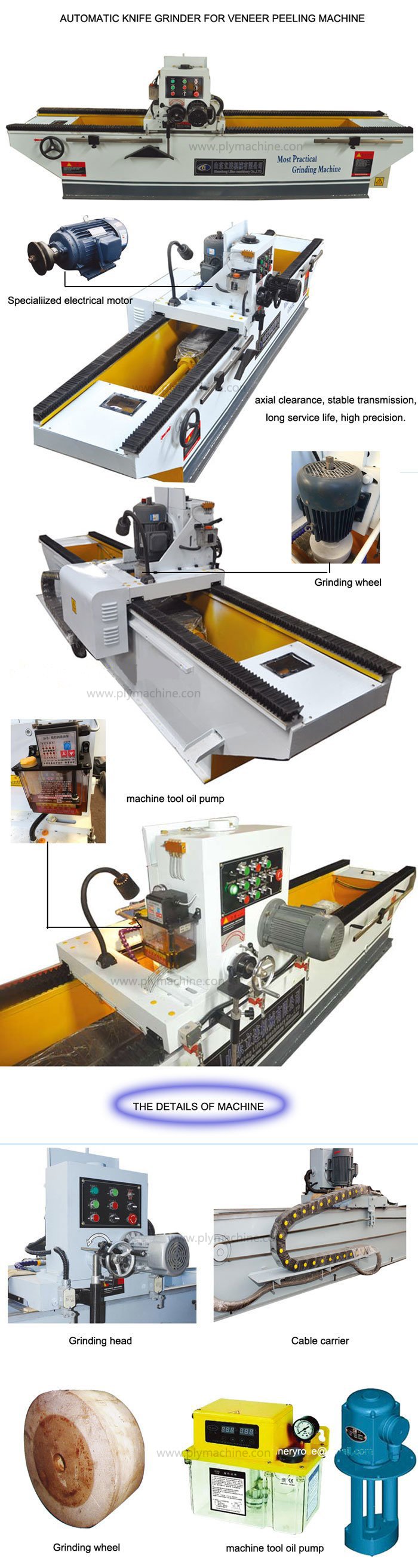

Knife Grinding Machine for plywood making
1.This machine can work types: straight knife, knife like peeling knife, knife granulator, slicing knife, knife, scissors and so on.
2 Longmen frame design, combined with high quality steel welding, the elimination of internal stress, the elimination of internal stress. The body has a high strength and good rigidity.
3.grinding head with special motor. It can adjust the direction of axial clearance, stable transmission, long service life, high precision.
4 the vertical motion of the ball screw is used to ensure the accuracy.
5 the working platform adopts electromagnetic chuck, and it is very convenient to use a knife. The working table is easy to adjust the angle of the worm wheel and worm.
6 rail with linear guide rail to ensure the stability of the horizontal motion of the grinding head. Taiwan HIWIN linear guide rail imports.
7 use of transducer. Easy to adjust grinding head horizontal and vertical speed.
8 the working accuracy of the machine is 0.01mm
Parameters of knife sharpener
| Model | YM1500 | YM3000 | YM3500 |
| Max. grinding length | 1500mm | 3000mm | 3500mm |
| Working-table width | 180mm | 180mm | 200mm |
| Grinding head motor | 4kw,380V-50Hz | 4kw,380V-50Hz | 4kw,380V-50Hz |
| Walking motor | 0.75kw,380V-50Hz | 0.75kw,380V-50Hz | 0.75kw,380V-50Hz |
| Lifting motor | 0.55kw,380V-50Hz | 0.55kw,380V-50Hz | 0.55kw,380V-50Hz |
| Wheel rotation rate | 1400r/min | 1400r/min | 1400r/min |
| Linear speed for | 15m/s | 15m/s | 15m/s |
| grinding wheel | |||
| Speed of sliding plate | Variable speed | Variable speed | Variable speed |
| Tilting range for | ±90° | ±90° | ±90° |
| working-table | |||
| Grinding wheel form | Cup | Cup | Cup |
| Grinding wheel diameter | 200mm | 200mm | 200mm |
| Overall dimension | 3000x1300x1400mm | 5300x1300x1400mm | 5800x1300x1400mm |
| Weight | 1500kg | 2900kg | 3200kg |
Q&A:
1. Q: Are you a factory or a trading company?
A: We are a factory who manufacture the machine by ourself. We have 2 factoies and 1 trading company.
2. Q: What is the delivery time?
A: Normally will be 30 days after getting deposit or original LC.
3. Q: What is the maintenance period? What kinds of after-sale service do you support?
A: 1 year after delivery. We supply telephone after-sale service, video service and e-mail service. If can not deal with the problem, our tech-staff will go abroad to service.
4. Q:What is the payment terms?
A:a.T/T(30% deposit, 70% before delivery in FOB or 70% paied against copy of B/L in CFR)
b. 100% irrevocable L/C at sight.
5. Q: Can we visit your factory?
A: Welcome to visit us! Everyday we have customers from different countries. By now, we have exported to more than 20 countries customer.
Our services:
1.We will send our engineer under your indications to your factory for installing, debugging and maintaining, you only need to afford the cost of the flights, and the engineer's accommodation .
2.If you are experienced in installing jobs, we will provide ongoing technical support for you.
Guarantee time for the main parts of the machine will be 12 months, in this period, if the machines itself have the problem, we will freely maintain it, but not including the problem caused by the wrong or rough operation.
3.The buyer sends people to seller's factory for study:
one month and one person. The buyer should pay for the round air fare, and the seller arrange for food and accommodation, and the service including: the machine's fixing, debugging, operating, maintaining.
4.After the warranty, we can also supply the engineer service and the technical service, but you need to pay the salary for the engineer! and afford the cost of the replaced aparts yourself. More service, you can get by send us an e-mail or a fax.
After Sale service:
Pre-sale services:
1) Provide the free consultation of the equipment
2) Provide the standard device and the flow chart
3) According to the clients' special requirement, offering the reasonable plan and free design to help to select the equipment.
4) Welcome to visit our factory
Services during the sales:
1) Inspect the machine before leaving the factory.
2) Oversea install and debug the equipment
3) Train the first-line operator.
After sale services:
1) 24 hours online service
2) Provide the VIDEO with Install and debug the equipment
3) Provide technical exchanging
4) Door to door service is possible
Contacts:
We are the manufacturer of plywood machine from China . All of our products are with CE approval and special design according to customer's requirement is available.
More details please contact us .
